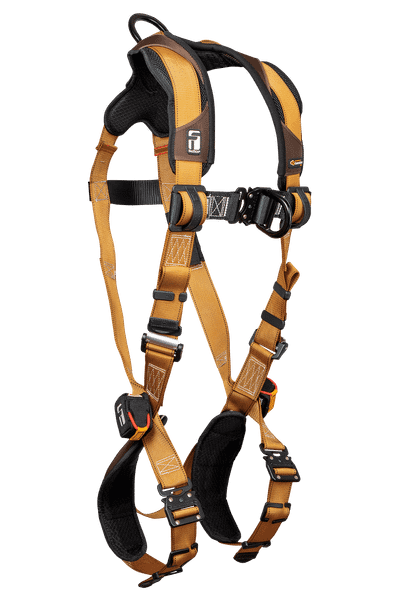

Advanced ComforTech® Gel 2D Climbing Non-belted Full Body Harness

SKU:

7082BFD

UPC:

family group:

ComforTech® Gel

parent part number:

7082BFD

performance 3 header:

OSHA User Capacity

document name 3:

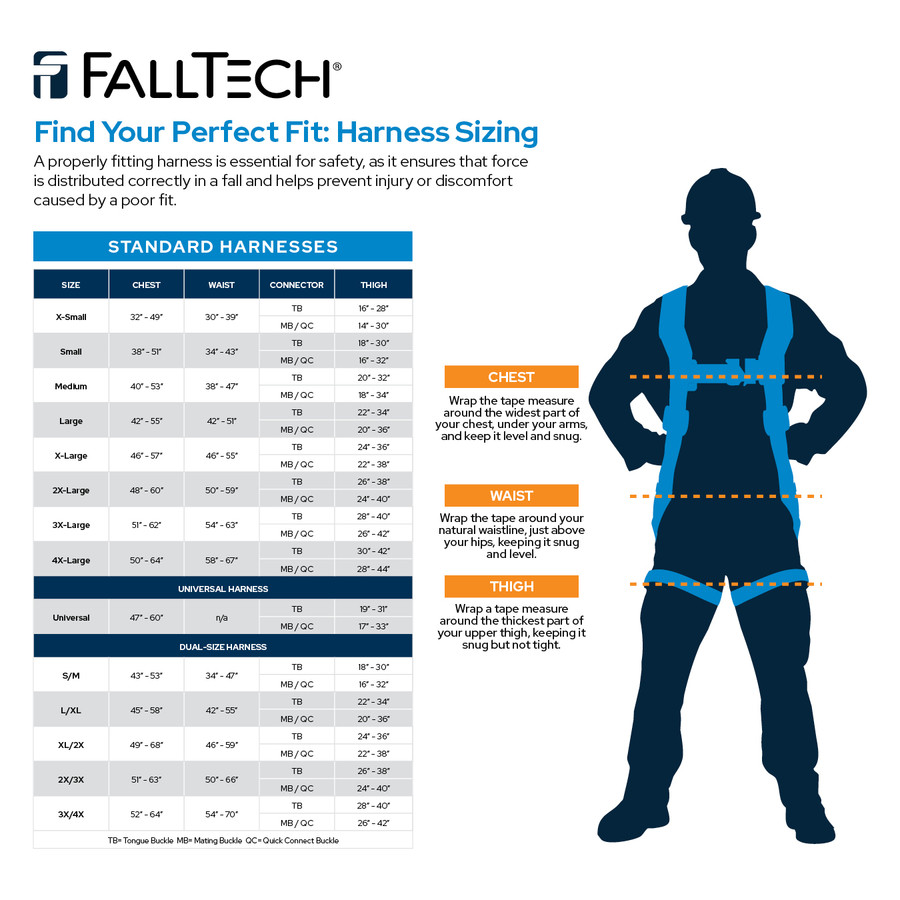

Harness Sizing Chart

material 1 header:

Webbing

filter - osha:

OSHA Compliant

material 2 header:

D-rings

material 2 detail:

Aluminum alloy; 5,000 lb min. static strength

category tier 3:

ComforTech® Gel

filter - buckles and adjusters:

Quick-connect Legs and Chest

size 1:

7082BFDS - Small

document name 2:

Declaration of Conformity

video embed url:

4Vq7PNEMuz4

material 1 detail:

Polyester; 5,000 lb min. static strength

similar solutions:

7082B, 7081BFD, 7082B3D

filter - webbing material:

Polyester

document file 1:

instruction_manuals/MFBH04_Rev_D_111921_EN_ES_FR.pdf

performance 2 detail:

130 to 310 lb max.

size 3:

7082BFDL - Large

1st bullet:

Shoulder yoke and sub-pelvic leg pads feature exclusive gel endoskeleton for unsurpassed user comfort

brand image:


other items you may need:

72706SB1, 72706SB4

video-link:

NpXWOF7v6f0

performance 3 detail:

130 to 425 lb max.

sizes available:

4 sizes available

relevant standards 1:

OSHA 1926.502 and 1910.66

product type:

Climbing Non-belted

2nd bullet:

Proprietary dorsal attachment sleeve supports effortless addition of personal SRLs.

7th bullet:

Meets OSHA 1926.502 and 1910.66 Regulations

document file 3:

sizing_charts/Harness_Sizing_Chart_2019.pdf

performance 1 detail:

3,600 lb min.

6th bullet:

Includes fully adjustable suspension trauma relief system

filter - d-ring connecting elements:

Dorsal and Sternal

material 3 header:

Buckles and Adjusters

filter - configuration:

Climbing Non-belted

category tier 2:

Full Body Harnesses

3rd bullet:

Exclusive aluminum camlock torso adjusters provide simple and secure upper-body fit

filter - application:

Fall Arrest and Climbing, 2D

document file 2:

declarations_of_conformity/B0317097a_DOC.pdf

performance 2 header:

ANSI User Capacity

4th bullet:

Features lightweight forged aluminum alloy dorsal and sternal D-rings

5th bullet:

Quick-connect chest and leg buckles feature visual indicators showing positive connection

size 4:

7082BFDXL - XL

document name 1:

Instruction Manual

filter - hardware material:

Aluminum Alloy

performance 1 header:

Static Strength

filter - brand:

Advanced ComforTech® Gel

size 2:

7082BFDM - Medium

descriptor 1:

Fall Arrest and Climbing

material 3 detail:

Aluminum alloy and plated alloy steel; 3,372 lb min. static strength

descriptor 2:

Dorsal and Sternal D-rings
