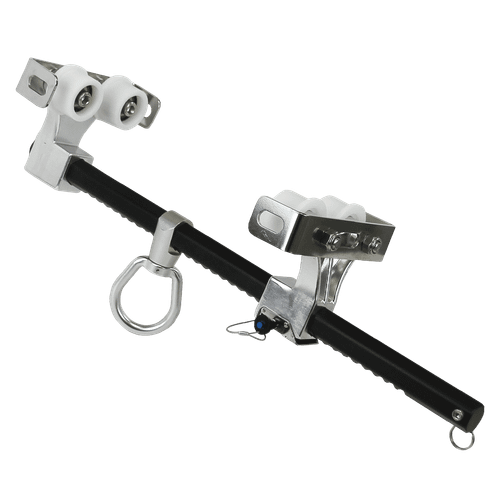

8" All-steel Beam Trolley Anchor

SKU:

7711

UPC:

filter - application:

Mobile/Trailing

1st bullet:

Features single trolley adjustment and threaded steel crossbar

document file 2:

declarations_of_conformity/A0218047_DOC.pdf

material 1 header:

D-ring

document file 1:

instruction_manuals/MANC08_Rev_B_031318.pdf

performance 1 detail:

5,000 lb min.

filter - ansi:

ANSI Compliant

performance 2 detail:

130 to 310 lb max.

descriptor 2:

Steel wheels and crossbar

relevant standards 1:

ANSI Z359.18-2017

family group:

Steel Anchorage

filter - anchor type:

I-Beam/Clamping

filter - osha:

OSHA Compliant

performance 3 detail:

130 to 425 lb max.

product type:

I-beam Trolley

category tier 2:

Steel

material 2 header:

Crossbar

4th bullet:

For temporary or permanent installation on overhead horizontal I-beams

5th bullet:

Complies with ANSI Z359.18-2017

2nd bullet:

Includes steel wheels, side plates and adjustment rings.

material 3 header:

Wheel Plates

document name 2:

Declaration of Conformity

document name 1:

Instruction Manual

performance 3 header:

OSHA User Capacity

performance 2 header:

ANSI User Capacity

performance 1 header:

Static Strength

3rd bullet:

Fits beam flanges from 3" to 8" wide and up to 1-1/2" thick

material 1 detail:

Plated alloy steel; 5,000 lb min. static strength

material 2 detail:

Plated carbon steel

similar solutions:

7712

material 3 detail:

Powder coated carbon steel

descriptor 1:

Single-trolley Adjustment

other items you may need:

82710SC1, 8366, 7081B

relevant standards 2:

OSHA 1926.502 and 1910.66

filter - primary material:

Plated Alloy Steel
