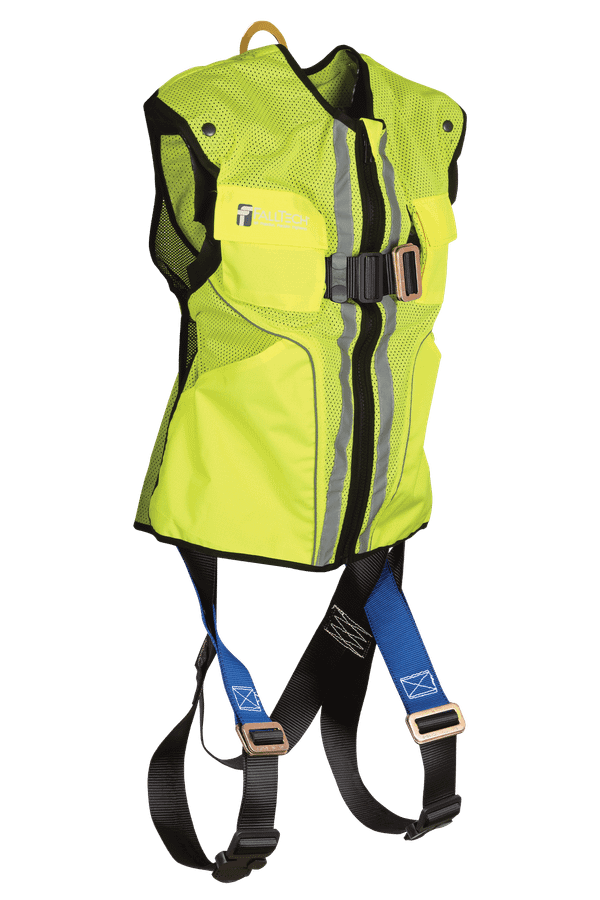

Hi-Vis Lime Construction-grade Vest with 1D Standard Non-belted Full Body Harness

Name: Fall Tech
Address: 1306 S. Alameda St., Compton, CA 90221, Compton, CA, 90221, US
Telephone: (800) 719-4619

Contact Sales

Designed for construction applications, this integrated vest and full-body harness combine enhanced visibility with dependable fall protection in a streamlined, easy-to-wear design.

Product Overview

Downloads

Instruction Manual

Declaration of Conformity (ANSI)

Declaration of Conformity (CSA)

Sizing Chart

Spec Sheet

Compliant With

ANSI Z359.11-2014

OSHA 1926.502 and 1910.140

CSA Z259.10-2018

SKU:: 7015LXL
UPC:: 848013020734
Filter - Buckles and Adjusters:: Mating Buckle Legs and Chest
Material 1 Header:: Webbing
3rd Bullet:: Day-bright mesh and solid fabric construction with secondary reflectivity
Material 1 Detail:: Polyester; 5,000 lb min. static strength
PLP Icon - FBH - D-Rings:: 1
Filter - D-Ring Connecting Elements:: Dorsal
Descriptor 1:: 1 D-Ring: Dorsal
Family Group:: Hi-Vis Vest Harness
Material 3 Header:: Buckles and Adjusters
Performance 2 Header:: ANSI User Capacity
Similar Solutions:: 7015LXO, 7018LXL
4th Bullet:: Vest features four front pockets and internal donning fasteners and loops for removable integration with harness straps
Material 2 Header:: D-ring
category tier 2:: Full Body Harnesses
Product Type:: Non-Belted Full Body Harness
Filter - Hardware Material:: Plated Alloy Steel
Filter - Webbing Material:: Polyester
Performance 3 Header:: OSHA User Capacity
category tier 3:: High-Vis Vest
Performance 2 Detail:: 130 to 310 lb max.
Filter - CSA:: CSA Compliant
Filter - OSHA:: OSHA Compliant
Filter - ANSI:: ANSI Compliant
PLP Icon - FBH - Leg Connection:: MB
Performance 1 Header:: Static Strength
Performance 3 Detail:: 130 to 425 lb max.
Filter - Application:: Fall Arrest, 1D
Material 3 Detail:: Plated alloy steel; 3,372 lb min. static strength
2nd Bullet:: Harness features dorsal D-ring for fall arrest with mating buckle leg and chest closures.
Filter - Configuration:: Non-Belted
Filter - Brand:: Hi-Vis Vest Harness
Descriptor 2:: Mating Buckle Leg Adjustment
parent part number:: 7015LXL
1st Bullet:: Includes high-visibility safety vest with integrated Contractor #7015-series harness
Performance 1 Detail:: 3,600 lb min.
5th Bullet:: Complies with ANSI Z359.11-2014
Material 2 Detail:: Plated alloy steel; 5,000 lb min. static strength
Other Items You May Need:: 8259, 7372, 72706SB1
Sizes Available:: 3 sizes available
Instruction Manual:: https://cdn11.bigcommerce.com/s-1wxw1202sk/content/product_documents/instruction_manuals/MFBH04_Rev_E_050525_EN_ES_FR.pdf
Declaration of Conformity (ANSI):: https://cdn11.bigcommerce.com/s-1wxw1202sk/content/product_documents/declarations_of_conformity/B1117168_DOC.pdf
Declaration of Conformity (CSA):: https://cdn11.bigcommerce.com/s-1wxw1202sk/content/product_documents/declarations_of_conformity/BC1019002_DOC.pdf
Sizing Chart:: https://cdn11.bigcommerce.com/s-1wxw1202sk/content/product_documents/sizing_charts/FallTech_Harness_Sizing_Chart_Men_2026.pdf
BC Status:: Yes
Related Products:: 7015LXO,7018LXL,8259,7372,72706SB1
Sizing Chart Image:: https://images.salsify.com/image/upload/s--9lA_GNgw--/xmkebx4xbkyvk1aqaia3.jpg
Size 1:: 7015SML - Small/Med Vest with UniFit Harness
Size 2:: 7015LXL - Large/XL Vest with UniFit Harness
Size 3:: 70152X3XL - 2X/2X Vest with 2X/3X Harness
Size 4:: 70152X3XL - 2X/2X Vest with 2X/3X Harness
Relevant Standards 1:: ANSI Z359.11-2014
Relevant Standards 2:: OSHA 1926.502 and 1910.140
Relevant Standards 3:: CSA Z259.10-2018
BC Category:: 126
