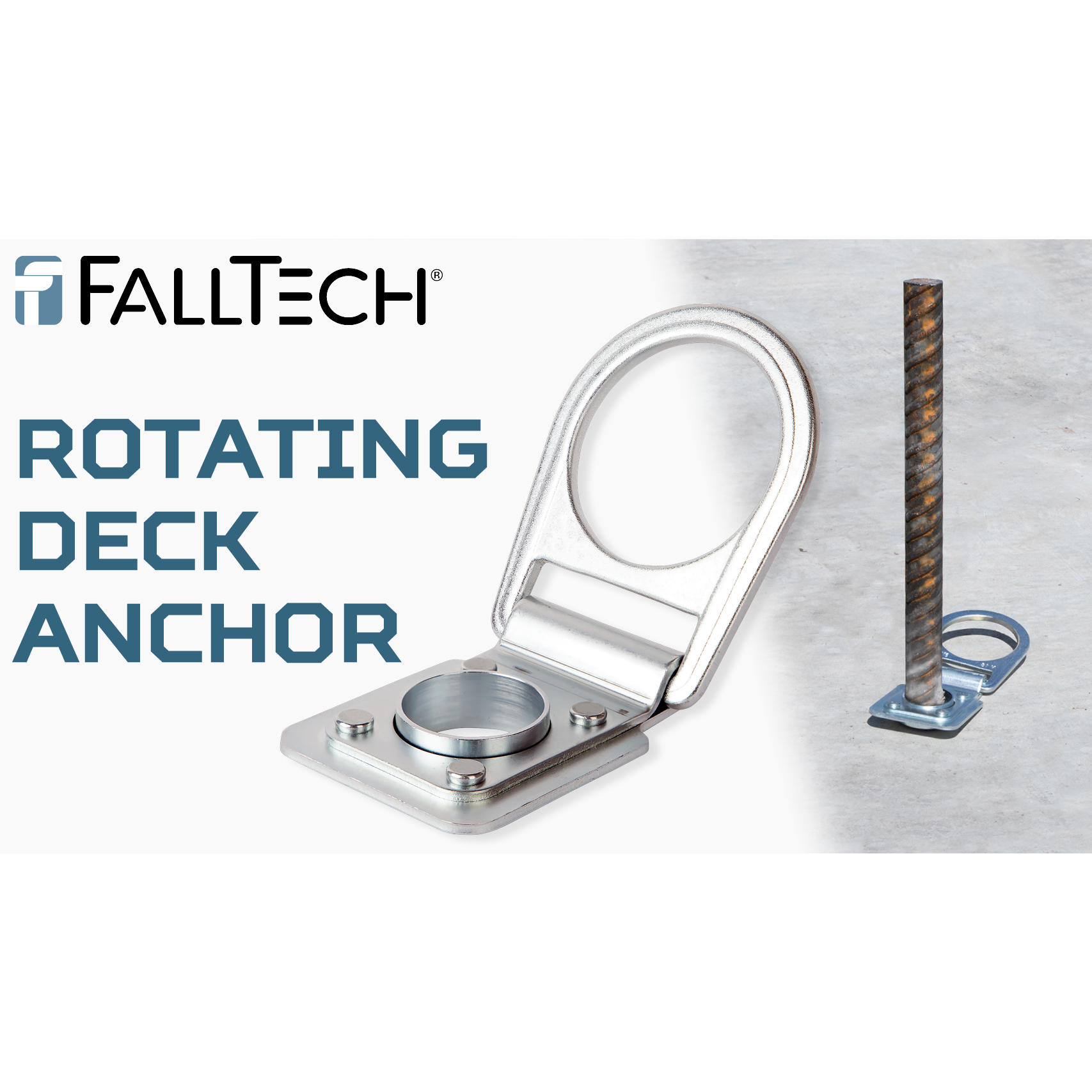

Rotating Deck Anchor for Rebar Attachment

Name: Fall Tech
Address: 1306 S. Alameda St., Compton, CA 90221, Compton, CA, 90221, US
Telephone: (800) 719-4619

Contact Sales

Designed for temporary rebar and threaded rod anchorage applications, this rotating anchor improves connection flexibility and worker mobility during concrete and structural work.

Product Overview

Downloads

Instruction Manual

Declaration of Conformity (ANSI)

Spec Sheet

Compliant With

ANSI Z359.18-2017

OSHA 1926.502 and 1910.66

SKU:: 7452AC
UPC:: 848013052551
Filter - Application:: Reusable
Filter - OSHA:: OSHA Compliant
Performance 2 Header:: ANSI User Capacity
Similar Solutions:: 7451C, 7451AC, 7451A
Material 2 Header:: D-ring
Performance 3 Header:: OSHA User Capacity
2nd Bullet:: Precision-cut bushing provides 360° D-ring rotation.
Performance 1 Detail:: 5,000 lb min.
Performance 1 Header:: Static Strength
3rd Bullet:: For temporary use on exposed #10 rebar and 1-1/8" threaded rod
Filter - Primary Material:: Plated Alloy Steel
Other Items You May Need:: 8256, 7081B, 72706TB3
Performance 2 Detail:: 130 to 310 lb max.
Filter - ANSI:: ANSI Compliant
video embed url:: GDA33fvhGrk
Performance 3 Detail:: 130 to 425 lb max.
1st Bullet:: Features alloy steel anchoring plate with alloy steel connecting D-ring
Relevant Standards 1:: ANSI Z359.18-2017
Descriptor 1:: Fasteners required
Product Type:: Rotating D-ring
Material 1 Header:: Anchoring Plate
video-link:: GDA33fvhGrk
Relevant Standards 2:: OSHA 1926.502 and 1910.66
Material 2 Detail:: Plated alloy steel; 5,000 lb min. static strength
Material 1 Detail:: Plated alloy steel
category tier 2:: Concrete
Descriptor 2:: For rebar attachment
Filter - Anchor Type:: Bolt-on/Weld-on
Family Group:: Concrete Anchorage
4th Bullet:: Anchor requires user-supplied rebar wing nut or hex nut for installation
6th Bullet:: Complies with ANSI Z359.18-2017
5th Bullet:: Features reusable anchoring plate and D-ring
