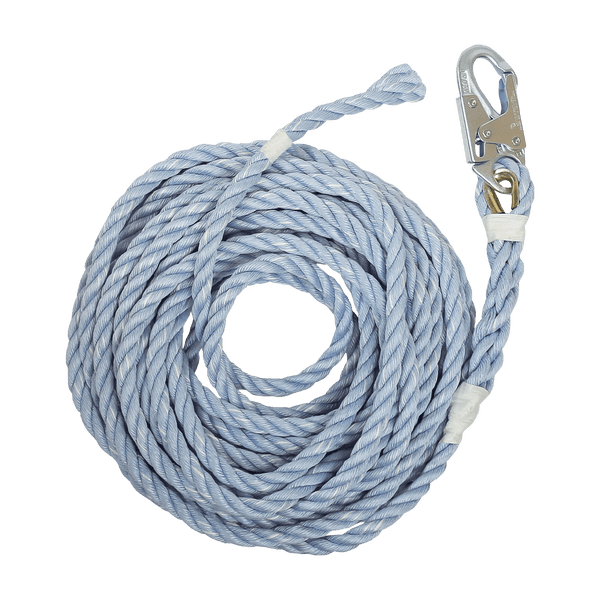

50' Construction-grade Vertical Lifeline with Back-spliced End

SKU:

8149

UPC:

performance 1 detail:

5,000 lbs. Min.

filter - configuration:

Back-splice

document name 2:

Declaration of Conformity

performance 2 detail:

130 to 310 lbs. Max.

document file 1:

instruction_manuals/MVLL01_REV_D_051221_EN.pdf

4th bullet:

Back-spliced trailing end is ideally suited for pairing with hinged arresters and adjusters

material 3 detail:

Plated Carbon Steel

other items you may need:

7016B, 7410, 8358

relevant standards 2:

OSHA 1926.502 and 1910.66

descriptor 2:

With steel snap hook

similar solutions:

8149T, 8150

filter - connector material:

Plated Alloy Steel

performance 2 header:

ANSI User Capacity

performance 3 header:

OSHA User Capacity

performance 3 detail:

130 to 310 lbs. Max.

material 2 header:

Connector

material 1 header:

Rope

descriptor 1:

Back-splice rope end

2nd bullet:

Steel thimble and splice-protecting shrink tube are included for lasting durability

3rd bullet:

Includes alloy steel snap hook for anchorage connection

document file 2:

declarations_of_conformity/C0218075_DOC.pdf

relevant standards 1:

ANSI Z359.15-2014

filter - osha:

OSHA Compliant

product type:

50' Lifeline 5/8" Rope

performance 1 header:

Static Strength

filter - ansi:

ANSI Compliant

family group:

Vertical Lifeline

material 3 header:

Thimble

category tier 2:

Vertical Lanyards

category tier 3:

Vertical Lifelines

material 1 detail:

3-strand twisted copolymer; 5,000 lbs. Min.

material 2 detail:

Plated alloy steel; 5,000 lbs. Min. static strength with 3,600 lbs. gate strength

1st bullet:

Constructed with construction-grade 5/8" copolymer 3-strand twisted rope

filter - anchorage connector:

Snap Hook

5th bullet:

Complies with ANSI Z359.15-2014

document name 1:

Instruction Manual
