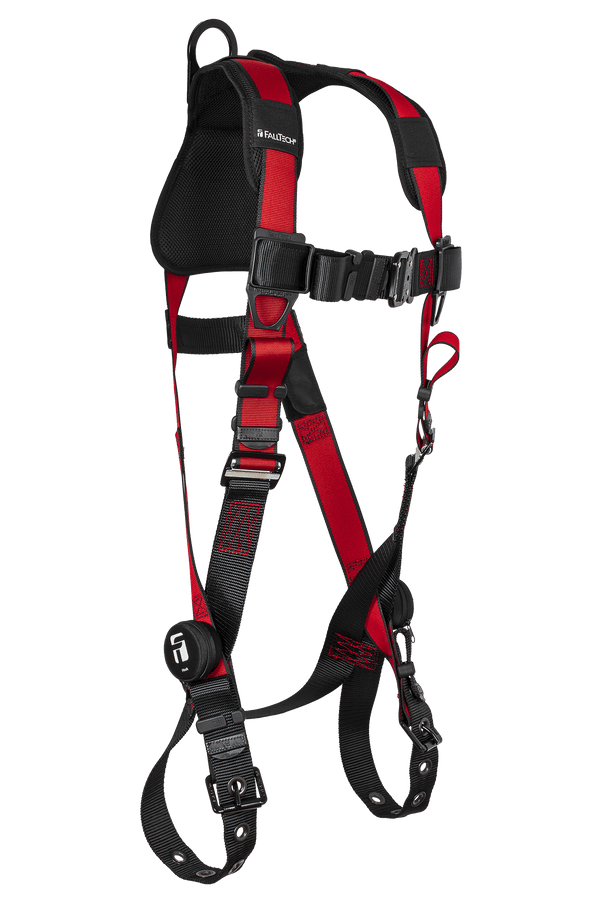

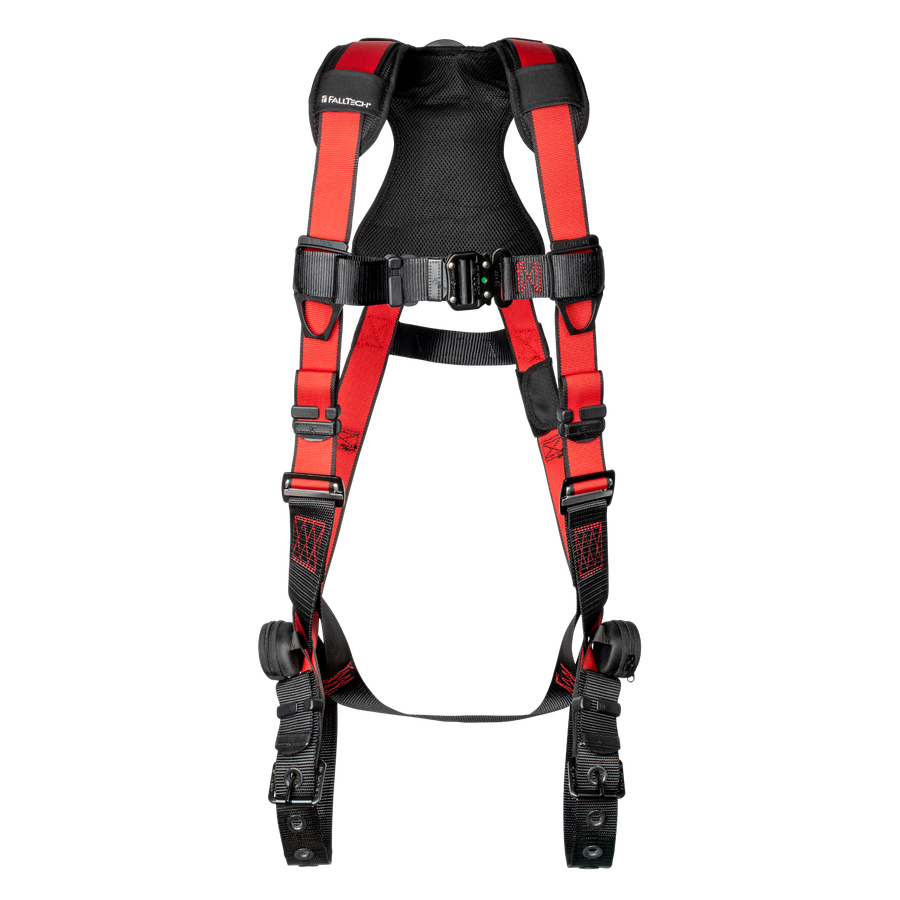

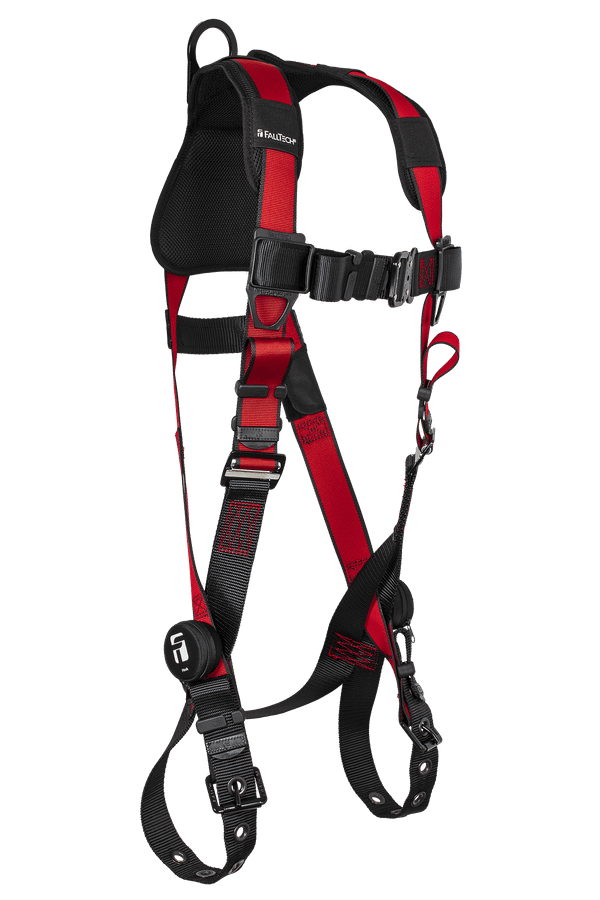

Tradesman® Pro 1D Standard Non-belted Full Body Harness, Tongue Buckle Leg Adjustments

SKU:

7008C

UPC:

brand image:


document name 3:

Declaration of Conformity (CSA)

3rd bullet:

Dorsal attachment tunnel allows for fast, hassle-free connection of single or twin SRL-Ps and keeps them optimally positioned on the back reducing fatigue

filter - hardware material:

Plated Alloy Steel

document name 1:

Instruction Manual

document name 2:

Declaration of Conformity (ANSI)

filter - brand:

Tradesman® Pro

filter - configuration:

Non-Belted

family group:

Tradesman® Pro

plp icon - fbh - d-rings:

1

2nd bullet:

V-slot locking D-ring plate minimizes slippage for maximum comfort and minimal adjustment throughout the day

size 3:

7008CLX - Dual-Size Large/XL

filter - application:

Fall Arrest, 1D

filter - d-ring connecting elements:

Dorsal

product type:

Non-Belted Full Body Harness

filter - leg type:

Traditional

document name 6:

Harness Sizing Chart

performance 3 header:

OSHA User Capacity

size 1:

7008CXS - XS

document name 4:

Sell Sheet/Brochure

category tier 3:

Tradesman® Pro

sizes available:

4 sizes available

document file 6:

sizing_charts/Harness_Sizing_Chart_2019.pdf

material 3 detail:

Plated alloy steel; 3,372 lb min. static strength

document file 3:

declarations_of_conformity/BC0911033_DOC.pdf

document file 1:

instruction_manuals/MFBH04_Rev_D_111921_EN_ES_FR.pdf

category tier 2:

Full Body Harnesses

6th bullet:

Quick-connect buckle features visual indicators showing positive connection

7th bullet:

Tongue buckle legs provide quick and simple lower-body adjustment

4th bullet:

Features integral tri-layer padded shoulder yoke to provide breathable user comfort

5th bullet:

Plated alloy steel low-profile spring tension roller torso adjusters provide simple upper-body adjustment

material 3 header:

Buckles and Adjusters

8th bullet:

Includes suspension trauma relief straps

9th bullet:

Complies with ANSI Z359.11-2021

relevant standards 1:

ANSI Z359.11-2021

document file 4:

sell_sheets/Tradesman_Pro_Brochure_072023.pdf

performance 1 detail:

3,600 lb min.

size 4:

7008C2X3X - Dual-Size 2XL/3XL

similar solutions:

7010B, 7006B

relevant standards 3:

OSHA 1926.502 and 1910.66

size 2:

7008CSM - Dual-Size Small/Med

material 1 detail:

Polyester; 5,000 lb min. static strength

relevant standards 2:

CSA Z259.10-2018

performance 2 detail:

130 to 310 lb max.

plp icon - fbh - leg connection:

TB

document file 5:

sell_sheets/Tradesman_Pro_Flyer_032024.pdf

performance 2 header:

ANSI User Capacity

parent part number:

7008C

filter - webbing material:

Polyester

other items you may need:

84108TP1, 8240, 72706SB1, 7372

filter - ansi:

ANSI Compliant

filter - harness leg buckles:

Tongue Buckle

1st bullet:

Features all-black plated alloy steel hardware for refined, low profile look

material 1 header:

Webbing

filter - osha:

OSHA Compliant

material 2 detail:

Plated alloy steel; 5,000 lb min. static strength

descriptor 2:

Tongue Buckle Leg Adjustment

document name 5:

Tradesman® Pro Flyer

filter - csa:

CSA Compliant

performance 3 detail:

130 to 425 lb max.

filter - buckles and adjusters:

Tongue Buckle Legs and Quick-connect Chest

performance 1 header:

Static Strength

descriptor 1:

1 D-Ring: Dorsal

document file 2:

declarations_of_conformity/B0401173a_DOC.pdf

material 2 header:

D-ring
