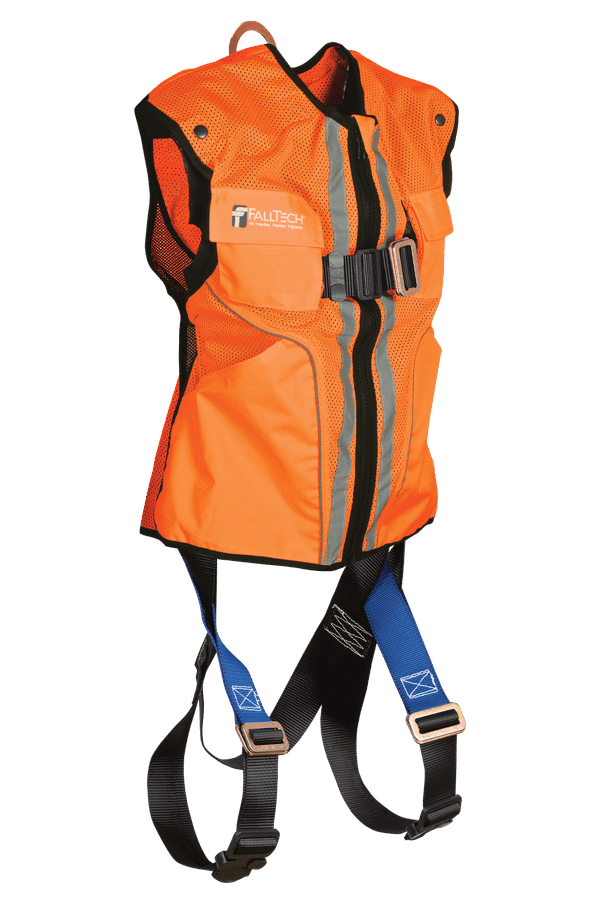

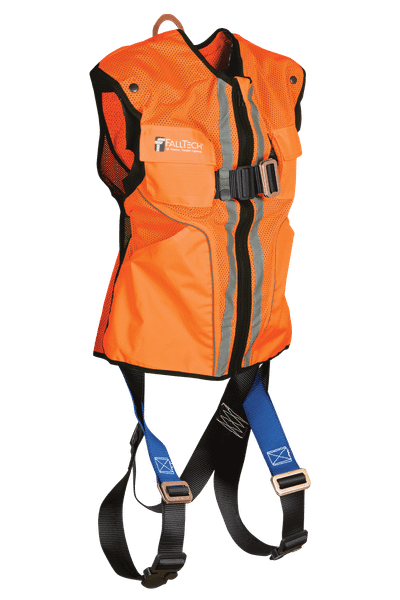

Hi-Vis Orange Construction-grade Vest with 1D Standard Non-belted Full Body Harness

SKU:

70152X3XO

UPC:

parent part number:

7015LXO

performance 2 header:

ANSI User Capacity

material 2 header:

D-ring

filter - csa:

CSA Compliant

other items you may need:

8259, 7372, 72706SB1

material 3 detail:

Plated alloy steel; 3,372 lb min. static strength

document file 2:

declarations_of_conformity/B1117168_DOC.pdf

plp icon - fbh - leg connection:

MB

2nd bullet:

Harness features dorsal D-ring for fall arrest with mating buckle leg and chest closures.

relevant standards 1:

ANSI Z359.11-2014

plp icon - fbh - d-rings:

1

material 3 header:

Buckles and Adjusters

document name 4:

Harness Sizing Chart

product type:

Non-Belted Full Body Harness

performance 1 header:

Static Strength

filter - configuration:

Non-Belted

similar solutions:

7015LXL, 7018LXO

4th bullet:

Vest features four front pockets and internal donning fasteners and loops for removable integration with harness straps

3rd bullet:

Day-bright mesh and solid fabric construction with secondary reflectivity

descriptor 1:

1 D-Ring: Dorsal

category tier 2:

Full Body Harnesses

filter - webbing material:

Polyester

relevant standards 3:

CSA Z259.10-2018

descriptor 2:

Mating Buckle Leg Adjustment

filter - ansi:

ANSI Compliant

document file 1:

instruction_manuals/MFBH04_Rev_D_111921_EN_ES_FR.pdf

category tier 3:

High-Vis Vest

size 1:

70152X3XO - 2X/2X Vest with 2X/3X Harness

1st bullet:

Includes high-visibility safety vest with integrated Contractor #7015-series harness

document name 3:

Declaration of Conformity (CSA)

filter - osha:

OSHA Compliant

material 1 header:

Webbing

performance 3 header:

OSHA User Capacity

filter - d-ring connecting elements:

Dorsal

filter - application:

Fall Arrest, 1D

filter - hardware material:

Plated Alloy Steel

document name 1:

Instruction Manual

filter - buckles and adjusters:

Mating Buckle Legs and Chest

document file 4:

sizing_charts/Harness_Sizing_Chart_2019.pdf

document file 3:

declarations_of_conformity/BC1019002_DOC.pdf

performance 1 detail:

3,600 lb min.

5th bullet:

Complies with ANSI Z359.11-2014

performance 2 detail:

130 to 310 lb max.

relevant standards 2:

OSHA 1926.502 and 1910.66

document name 2:

Declaration of Conformity

material 1 detail:

Polyester; 5,000 lb min. static strength

performance 3 detail:

130 to 425 lb max.

material 2 detail:

Plated alloy steel; 5,000 lb min. static strength

family group:

Hi-Vis Vest Harness
