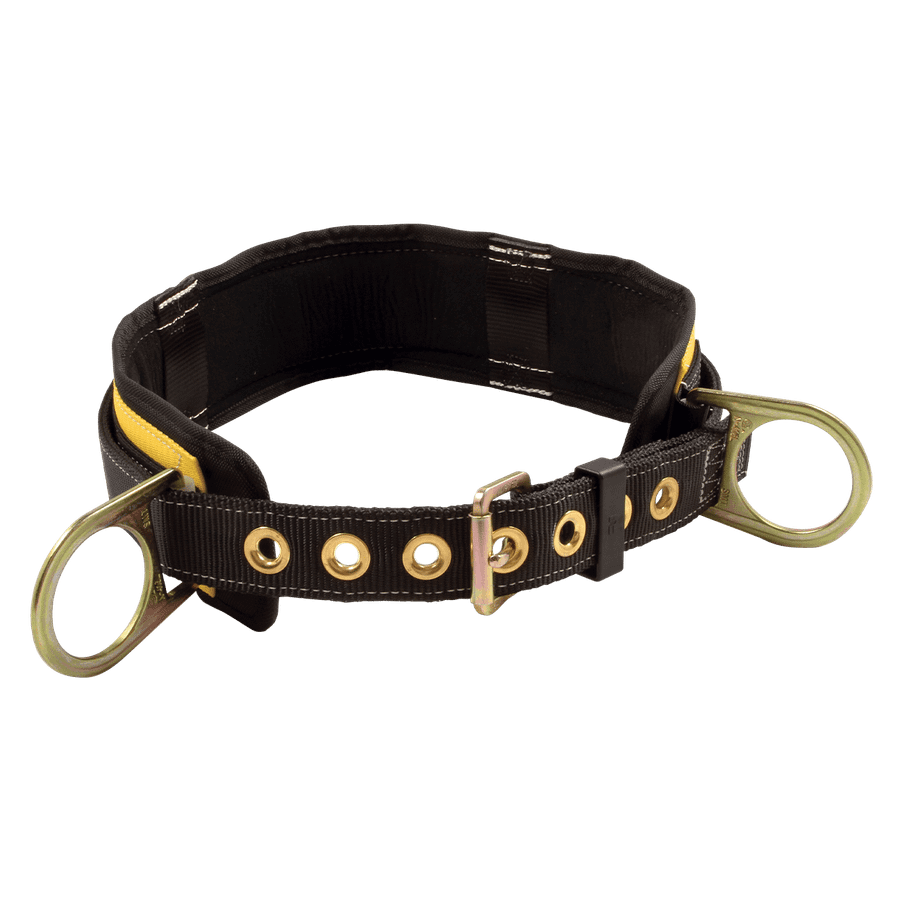

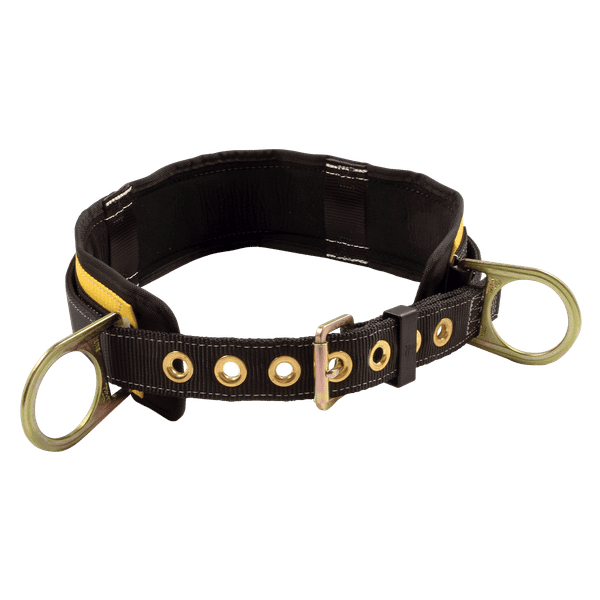

Premium 2D Work Positioning Body Belt, 4" x 25"

Features

• Features 4" x 25" bonded waist support positioning pad with 3" web reinforcement strap and tricot lining with PU foam construction
• Ideally suited for addition to non-belted full body harnesses.
• Includes plated alloy steel D-rings and belt buckle with brass grommets
• Removable belt features 7 adjustment positions providing a 9" range of fit
• Complies with ANSI Z359.11-2014

Sizes & Part Numbers

• 7056S - Small
• 7056M - Medium
• 7056L - Large
• 7056XL - XL

SKU:

7056

UPC:

material 2 detail:

Plated alloy steel; 5,000 lb min. static strength

performance 2 header:

OSHA User Capacity

document name 1:

Instruction Manual

similar solutions:

7055B, 7055

material 2 header:

D-rings

filter - hardware material:

Plated Alloy Steel

2nd bullet:

Ideally suited for addition to non-belted full body harnesses.

performance 1 detail:

130 to 310 lb max.

performance 1 header:

ANSI User Capacity

3rd bullet:

Includes plated alloy steel D-rings and belt buckle with brass grommets

document file 2:

declarations_of_conformity/B0717077a_DOC.pdf

1st bullet:

Features 4" x 25" bonded waist support positioning pad with 3" web reinforcement strap and tricot lining with PU foam construction

other items you may need:

8250W, 8250

size 1:

7056S - Small

performance 2 detail:

130 to 425 lb max.

size 4:

7056XL - XL

category tier 3:

Body Belts

material 3 detail:

Plated alloy steel; 3,372 lb min. static strength

filter - type:

Work Positioning, 2D

filter - ansi:

ANSI Compliant

parent part number:

7056

filter - osha:

OSHA Compliant

relevant standards 1:

ANSI Z359.11-2014

sizes available:

4 sizes available

descriptor 1:

Work Positioning

filter - d-ring connecting elements:

Hip

size 3:

7056L - Large

size 2:

7056M - Medium

filter - webbing material:

Polyester

relevant standards 2:

OSHA 1926.502 and 1910.66

document name 2:

Declaration of Conformity

material 1 detail:

Polyester; 5,000 lb min. static strength

filter - buckles and adjusters:

Tongue Buckle

category tier 2:

Belts and Accessories

descriptor 2:

Hip D-rings

material 3 header:

Buckle

family group:

Supported Body Belt

product type:

Removable Belt

4th bullet:

Removable belt features 7 adjustment positions providing a 9" range of fit

document file 1:

instruction_manuals/MBB01.3_042514.pdf

material 1 header:

Webbing

5th bullet:

Complies with ANSI Z359.11-2014
