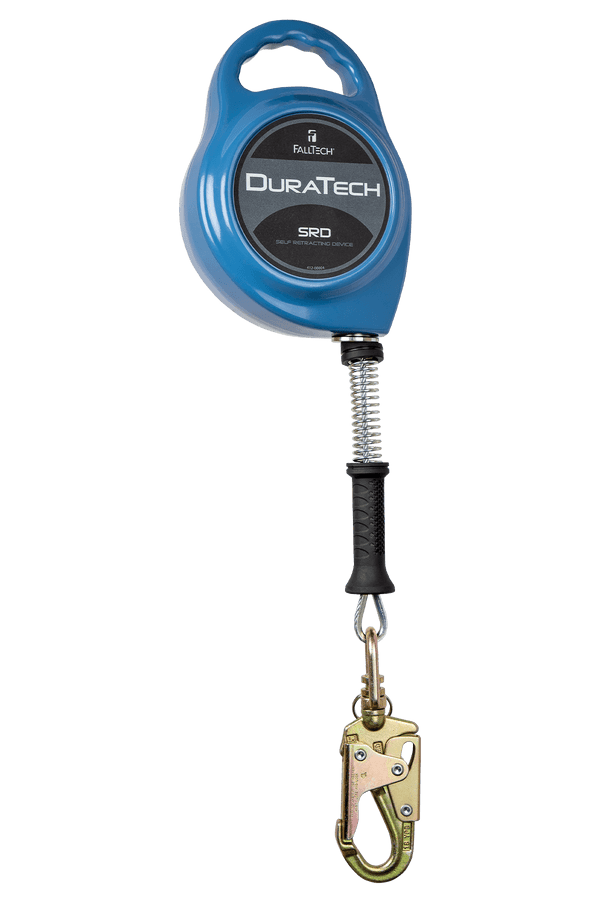

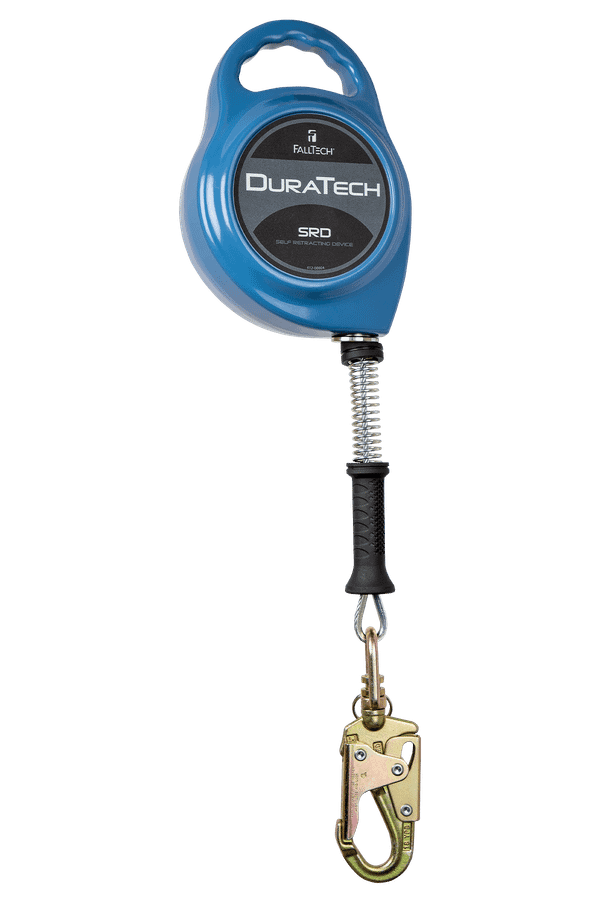

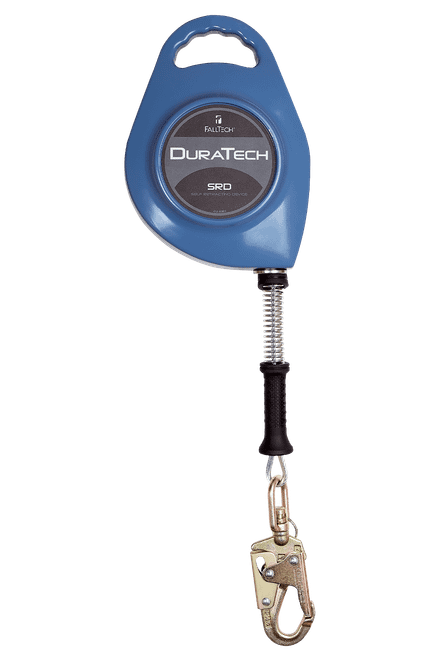

DuraTech® SRL with 20' Galvanized Cable and Side-payout Aluminum Housing

Features

• 3/16" galvanized steel cable lifeline with load-indicating swivel snap hook
• Side-payout configuration delivers smooth lifeline operation.
• Internal inertial braking system with dual disc brakes provides superior deceleration
• Lifeline assembly includes integrated recoil spring to reduce retraction lock-up
• Integrated lifeline hand-grip simplifies dorsal connection
• Stackable housing design and handle provide easy installation and storage
• Complies with ANSI Z359.14-2021

Sizes & Part Numbers

• 7227C - 20' (ANSI Compliant)
• 7229C - 25' (ANSI Compliant)
• 7232C - 30' (ANSI Compliant)
• 7268C - 50' (ANSI Compliant)
• C7268C - 50' (CSA Compliant)
• 7265C - 60' (ANSI Compliant)

SKU:

7227C

UPC:

performance 5 header:

Max. Arrest Distance

material 2 detail:

Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength

performance 2 header:

ANSI SRL Class/Type

similar solutions:

7226C, 7229C, 7232C, 7268C, 7265C, 727620

family group:

DuraTech® Overhead SRL

performance 6 header:

ANSI User Capacity

performance 5 detail:

42"

other items you may need:

8450, 7372, 7428

performance 2 detail:

Class 1 SRL

category tier 3:

DuraTech® SRLs

filter - lifeline material:

Galvanized Steel Cable

plp icon - srl - length:

20'

performance 3 detail:

1,350 lb

material 1 header:

Cable

filter - srl type:

SRL

performance 7 header:

OSHA User Capacity

document name 2:

Declaration of Conformity

filter - length:

20'

document name 1:

Instruction Manual

brand image:


performance 7 detail:

130 to 310 lb max.

ansi z359.14-2021 srl class 1 or 2:

Class 1

size 6:

C7268C - 50' (CSA Compliant)

2nd bullet:

Side-payout configuration delivers smooth lifeline operation.

performance 4 detail:

1,800 lb

performance 1 detail:

3,600 lb min.

3rd bullet:

Internal inertial braking system with dual disc brakes provides superior deceleration

plp icon - srl - ansi class:

1

1st bullet:

3/16" galvanized steel cable lifeline with load-indicating swivel snap hook

size 3:

7229C - 25' (ANSI Compliant)

size 5:

7268C - 50' (ANSI Compliant)

material 2 header:

Lifeline Connector

size 7:

7265C - 60' (ANSI Compliant)

performance 3 header:

Avg. Arrest Force

category tier 2:

Overhead SRLs

4th bullet:

Lifeline assembly includes integrated recoil spring to reduce retraction lock-up

performance 4 header:

Max. Arrest Force

filter - ansi:

ANSI Class 1 SRL Compliant

performance 1 header:

Static Strength

filter - overhead srl lifeline connector:

Swivel Snap Hook

relevant standards 1:

ANSI Z359.14-2021

parent part number:

7227C

filter - brand:

DuraTech®

size 4:

7232C - 30' (ANSI Compliant)

filter - osha:

OSHA Compliant

size 2:

7227C - 20' (ANSI Compliant)

filter - overhead srl lifeline connector material:

Alloy Steel

relevant standards 2:

OSHA 1926.502 and 1910.66

material 1 detail:

3/16" galvanized steel; 3,400 lb min. static strength

descriptor 1:

Steel Swivel Snap Hook

descriptor 2:

Galvanized Steel Wire Rope Lifeline

product type:

Class 1 SRL

7th bullet:

Complies with ANSI Z359.14-2021

document file 2:

declarations_of_conformity/D0404068a_DOC.pdf

performance 6 detail:

130 to 310 lb max.

document file 1:

instruction_manuals/MSRD15_Rev_F_061623_EN_BOOKLET.pdf

6th bullet:

Stackable housing design and handle provide easy installation and storage

5th bullet:

Integrated lifeline hand-grip simplifies dorsal connection
