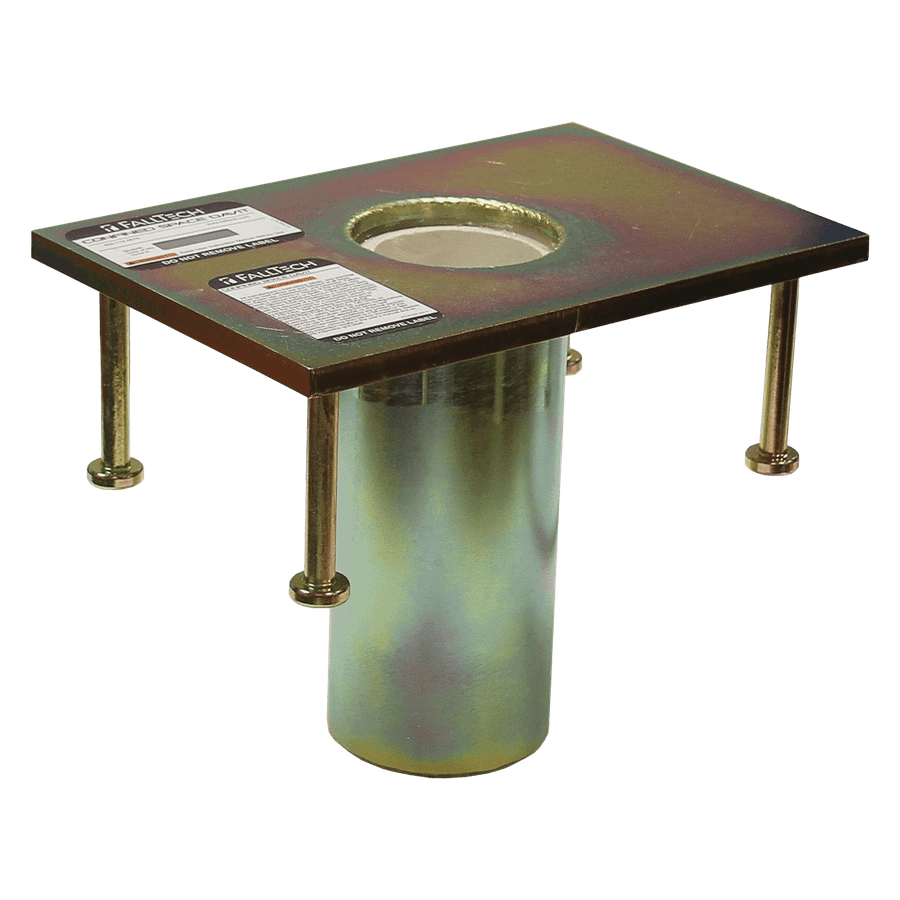

Flush-mount Plated Steel Cast-in Fixed Davit Base

SKU:

65030CFZ

UPC:

category tier 2:

Davit Systems and Bases

document name 2:

Declaration of Conformity

material 1 detail:

Plated carbon steel

performance 1 header:

Rated Capacity

3rd bullet:

Rugged 8" x 12" plate with 4" support rods provide long lasting fixed base solution

material 2 detail:

PVC pipe

5th bullet:

Flush floor profile is well-matched for high traffic areas and helps reduce tripping hazards

1st bullet:

Permanently installed davit base solution for is ideally suited for recurrent access locations

document file 1:

instruction_manuals/MCS32_Rev_A.pdf

filter - davit systems and base:

Fixed and Portable Davit Bases

4th bullet:

9" deep sleeve with PVC insert deliver secure anchoring point for davit arm and mast attachment

document name 3:

Sell Sheet/Brochure

material 1 header:

Davit Base

family group:

Fixed Davit Base

performance 3 header:

Mast Rotation

document name 1:

Instruction Manual

2nd bullet:

Cast-in design for new concrete construction installation.

performance 3 detail:

360°

performance 2 detail:

6,167 ft. lb

document file 3:

sell_sheets/Confined_Space_Brochure_09112020.pdf

relevant standards 1:

OSHA 1926.502 and 1910.66 when used in a complete system

filter - osha:

OSHA Compliant

other items you may need:

65080SCZ, 6500128, 6500244, 6500657, 6500433

descriptor 1:

Plated steel construction

material 2 header:

Sleeve Insert

7th bullet:

Meets OSHA 1926.502 regulations only when used with offset davit arms and mast extensions

6th bullet:

Plated steel construction throughout; also available in stainless steel

performance 2 header:

Mast Moment Proof Load

document file 2:

declarations_of_conformity/S0917012_DOC.pdf

product type:

Flush-mount Cast-in

performance 1 detail:

620 lb at minimum 4:1 design factor

similar solutions:

65030CFS, 65020BFZ
