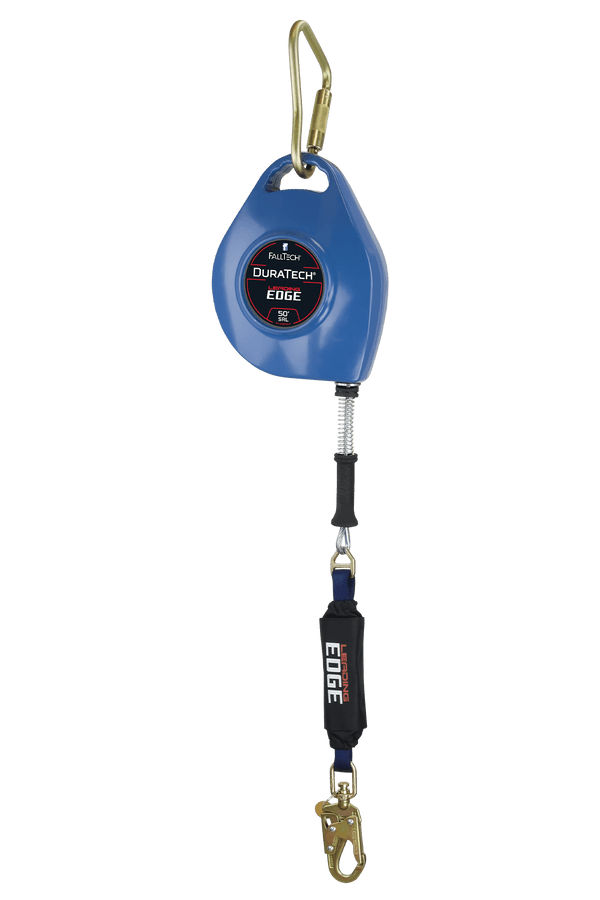

DuraTech® Leading Edge Class 2 SRL with 50' Galvanized Steel Cable and Aluminum Housing

Features

• 7/32" galvanized steel cable lifeline with load-indicating swivel snap hook
• Internal inertial braking system with dual disc brakes provides superior deceleration.
• Integrated external ViewPack® energy absorber enhances braking system and preserves lifeline integrity
• Side-payout housing design and lifeline recoil spring deliver smooth operation and help reduce nuisance lock-up
• Integrated lifeline hand-grip simplifies dorsal connection
• Stackable aluminum housing design and handle provide easy installation and storage
• Includes extra large anchorage carabiner with 2-1/4" gate opening
• Complies with ANSI Z359.14-2021 Class 2 SRL. Learn more and download White Paper

Sizes & Part Numbers

• 7227CLE - 20'
• 7232CLE - 30'
• 7268CLE - 50'
• 7265CLE - 60'

SKU:

7268CLE

UPC:

performance 5 header:

Max. Arrest Distance

material 2 detail:

Polyester tear-away

performance 2 header:

ANSI SRL Class/Type

similar solutions:

7227CLE, 7232CLE, 7265CLE, 727620LE, 7226C

family group:

DuraTech® Class 2 Leading Edge SRL

performance 6 header:

ANSI User Capacity

performance 5 detail:

42"

size 3:

7232CLE - 30'

material 4 header:

Anchorage Connector

category tier 3:

DuraTech® Leading Edge

filter - lifeline material:

Galvanized Steel Cable

plp icon - srl - length:

50'

performance 3 detail:

1,350 lb

filter - overhead srl anchorage connector material:

Alloy Steel

material 1 header:

Cable

relevant standards 2:

OSHA 1926.502 and 1910.66

filter - srl type:

SRL

material 4 detail:

Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength

performance 7 header:

OSHA User Capacity

document name 2:

Declaration of Conformity

filter - length:

50'

document name 1:

Instruction Manual

filter - overhead srl lifeline connector material:

Alloy Steel

performance 7 detail:

130 to 310 lb max.

performance 3 header:

Avg. Arrest Force

2nd bullet:

Internal inertial braking system with dual disc brakes provides superior deceleration.

performance 4 detail:

1,800 lb

performance 1 detail:

3,600 lb min.

plp icon - srl - ansi class:

2

ansi z359.14-2021 srl class 1 or 2:

Class 2

document file 2:

declarations_of_conformity/D0621049_DOC.pdf

1st bullet:

7/32" galvanized steel cable lifeline with load-indicating swivel snap hook

filter - brand:

DuraTech® Leading Edge

performance 2 detail:

Class 2 SRL

size 5:

7265CLE - 60'

size 4:

7268CLE - 50'

performance 6 detail:

130 to 310 lb max.

material 3 detail:

Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength

category tier 2:

Leading Edge SRLs

performance 4 header:

Max. Arrest Force

filter - ansi:

ANSI Class 2 SRL Compliant

4th bullet:

Side-payout housing design and lifeline recoil spring deliver smooth operation and help reduce nuisance lock-up

filter - overhead srl lifeline connector:

Swivel Snap Hook

product type:

Class 2 Leading Edge SRL

relevant standards 1:

ANSI Z359.14-2021

parent part number:

7227CLE

descriptor 1:

Steel Swivel Snap Hook

filter - overhead srl anchorage connector:

Carabiner

8th bullet:

Complies with ANSI Z359.14-2021 Class 2 SRL. Learn more and download White Paper

size 2:

7227CLE - 20'

brand image:


3rd bullet:

Integrated external ViewPack® energy absorber enhances braking system and preserves lifeline integrity

material 2 header:

Energy Absorber

material 1 detail:

7/32" galvanized steel; 3,600 lb min. static strength

performance 1 header:

Static Strength

descriptor 2:

Galvanized Steel Wire Rope Lifeline

material 3 header:

Lifeline Connector

7th bullet:

Includes extra large anchorage carabiner with 2-1/4" gate opening

other items you may need:

7395A, 7493B1, 7081B

filter - osha:

OSHA Compliant

document file 1:

instruction_manuals/MSRD28_Rev_B_081723_EN.pdf

6th bullet:

Stackable aluminum housing design and handle provide easy installation and storage

5th bullet:

Integrated lifeline hand-grip simplifies dorsal connection
