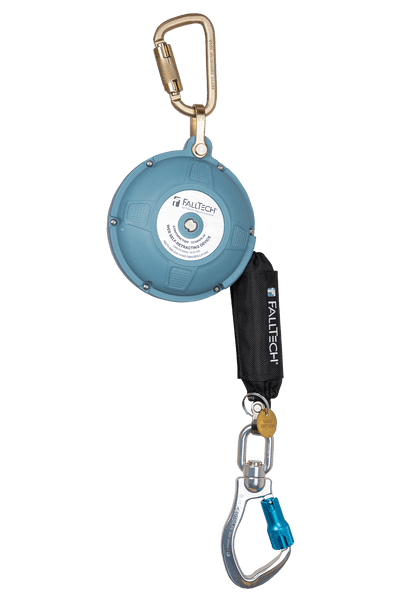

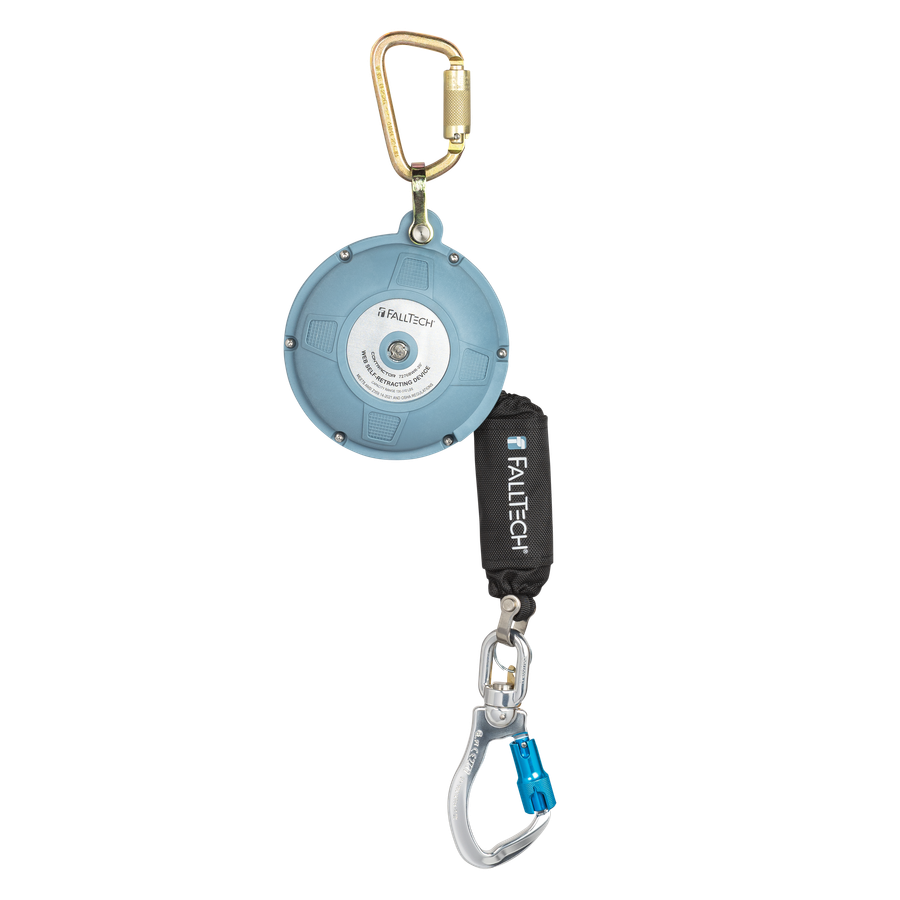

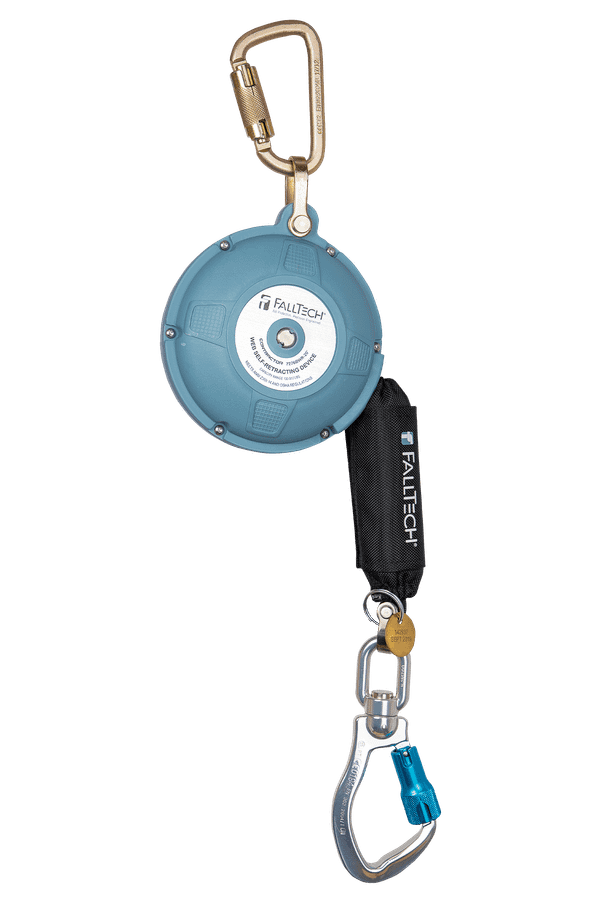

20' Contractor Web Class 1 SRL with Swivel Aluminum Carabiner
Product Specifications
7276BWR
Contact Sales
20' Contractor Web Class 1 SRL with Swivel Aluminum Carabiner
DOWNLOADS
Instruction Manual
Declaration of Conformity
Spec Sheet
Compliant With:
OSHA
1926.502 and 1910.66
ANSI
Z359.14-2021
Facebook
Email
Print
Twitter
Linkedin
Pinterest
(You save
)
SKU:
7276BWR
UPC:
descriptor 2:
Dyneema® Web Lifeline
category tier 2:
Overhead SRLs
ansi z359.14-2021 srl class 1 or 2:
Class 1
performance 7 header:
OSHA User Capacity
performance 5 detail:
42"
filter - overhead srl lifeline connector material:
Aluminum Alloy
relevant standards 2:
OSHA 1926.502 and 1910.66
performance 7 detail:
130 to 310 lb max.
performance 6 header:
ANSI User Capacity
filter - overhead srl anchorage connector material:
Alloy Steel
material 4 detail:
Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
descriptor 1:
Aluminum Swivel Carabiner
filter - overhead srl anchorage connector:
Carabiner
similar solutions:
82710SG4, 727620
category tier 3:
Compact Overhead SRLs
material 1 detail:
Dyneema®; 4,500 lb min.
size 2:
C7276BWR (CSA)
6th bullet:
Includes alloy steel anchorage carabiner
5th bullet:
Features aluminum alloy swivel carabiner lifeline connector
4th bullet:
External energy absorber features ViewPack® cover with inspection window and WrapPack label protection
3rd bullet:
Internal braking system and external energy absorber combine for positive stopping and smooth deceleration
plp icon - srl - length:
20'
other items you may need:
7372, 7428, 8366
2nd bullet:
Glass-filled nylon housing over internal steel frame provides unmatched impact resistance.
performance 1 header:
Static Strength
performance 1 detail:
3,600 lb min.
filter - brand:
Contractor
performance 3 detail:
900 lb
filter - length:
20'
brand image:
document file 2:
declarations_of_conformity/D0117044_DOC.pdf
document file 1:
instruction_manuals/MSRD18_Rev_B_102022_EN.pdf
filter - overhead srl lifeline connector:
Swivel Carabiner
performance 3 header:
Avg. Arrest Force
relevant standards 1:
ANSI Z359.14-2021
performance 2 header:
ANSI SRL Class/Type
performance 4 detail:
1,800 lb
filter - srl type:
SRL
material 2 header:
Energy Absorber
material 3 header:
Lifeline Connector
document name 2:
Declaration of Conformity
product type:
Class 1 SRL
filter - ansi:
ANSI Class 1 SRL Compliant
plp icon - srl - ansi class:
1
performance 5 header:
Max. Arrest Distance
material 4 header:
Anchorage Connector
filter - osha:
OSHA Compliant
material 2 detail:
Polyester tear-away
performance 2 detail:
Class 1 SRL
material 1 header:
Webbing
performance 4 header:
Max. Arrest Force
1st bullet:
Dyneema® web lifeline resists abrasion while providing trusted strength
material 3 detail:
Aluminum alloy; 5,000 lb min. static strength with 3,600 lb gate strength
document name 1:
Instruction Manual
family group:
Contractor Overhead SRL
filter - lifeline material:
Dyneema® Web
performance 6 detail:
130 to 310 lb max.
7th bullet:
Complies with ANSI Z359.14-2021 Class 1 SRL.
Learn more and download White Paper
size 1:
7276BWR (ANSI)
