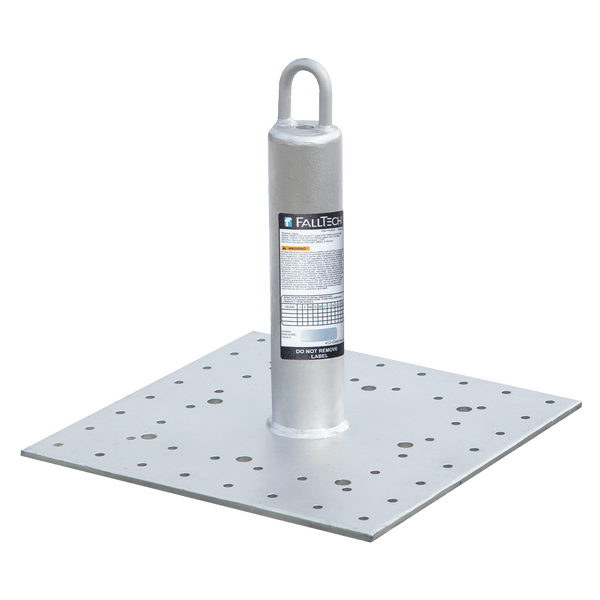

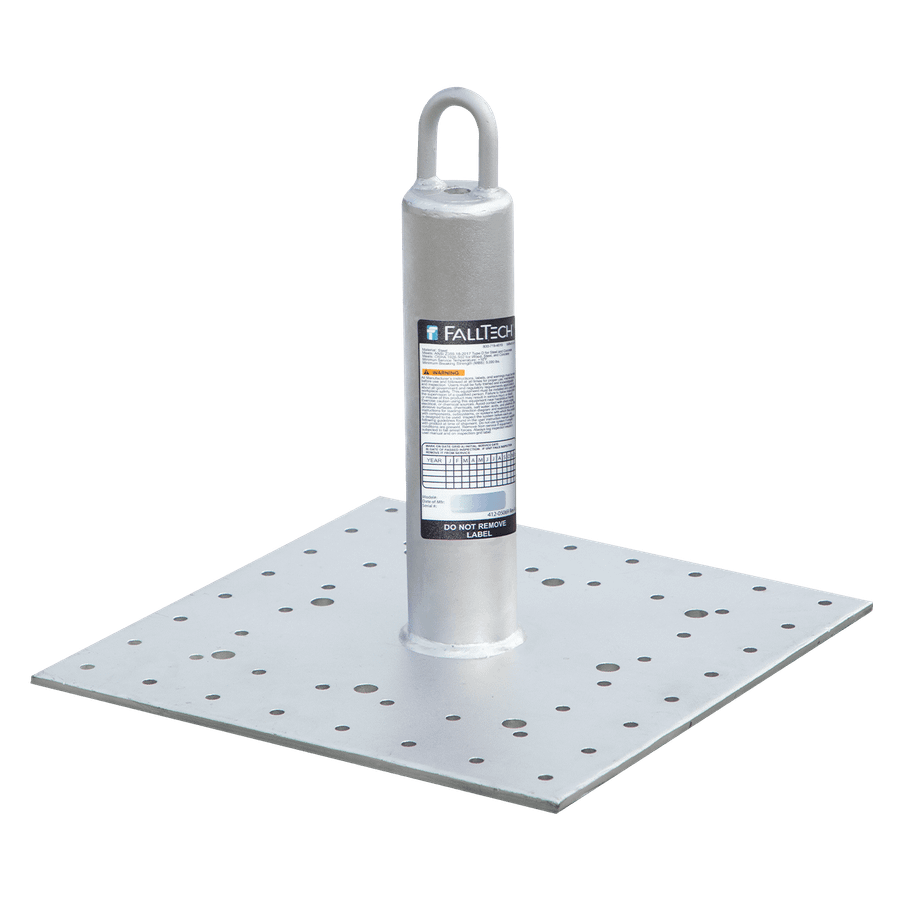

Post Anchor with Welded-eye for Wood, Concrete and Steel

SKU:

78012WCSWE

UPC:

category tier 2:

Roofing

size 2:

78218WCSWE - 18"

document name 2:

Declaration of Conformity

material 1 detail:

Galvanized carbon steel

performance 2 detail:

130 to 310 lb max.

3rd bullet:

16" x 16" x 1/2" base plate provides durable permanent installation to wood, concrete and steel structures

6th bullet:

Requires user-supplied fasteners for installation

5th bullet:

Features 1-1/4" x 2" welded eye

1st bullet:

Features fixed-position welded-eye connection for user's preferred fall arrest components

7th bullet:

Complies with ANSI Z359.18-2017

4th bullet:

Available in 12" and 18" post heights to elevate user's connections above the walking/working surface

document name 3:

Sell Sheet/Brochure

size 1:

78012WCSWE - 12"

filter - ansi:

ANSI Compliant

material 1 header:

Post Anchor

family group:

Roofing Anchorage

filter - osha:

OSHA Compliant

document name 1:

Instruction Manual

product type:

Post anchor for wood, concrete and steel

performance 3 detail:

130 to 310 lb max.

descriptor 1:

With welded-eye

document file 2:

declarations_of_conformity/A0719053_DOC.pdf

performance 2 header:

ANSI User Capacity

performance 3 header:

OSHA User Capacity

relevant standards 1:

ANSI Z359.18-2017

sizes available:

2 sizes available

other items you may need:

72706SB1, 8240

parent part number:

78012WCSWE

document file 1:

instruction_manuals/MANC33_Rev_B_020320.pdf

relevant standards 2:

OSHA 1926.502

performance 1 header:

Static Strength

document file 3:

sell_sheets/Post_Anchors_Brochure_022020.pdf

performance 1 detail:

5,000 lb min.

2nd bullet:

Welded galvanized steel post and plate construction.

similar solutions:

78218WCSWE
