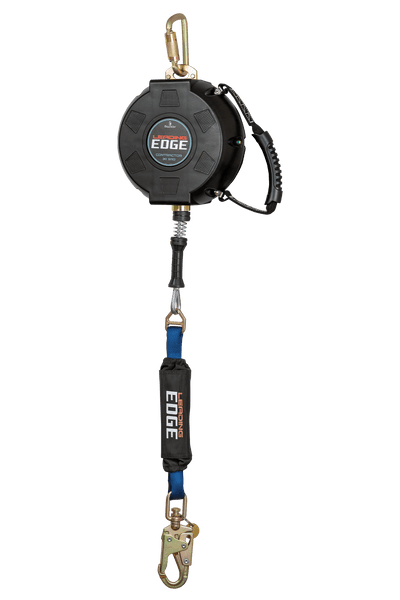

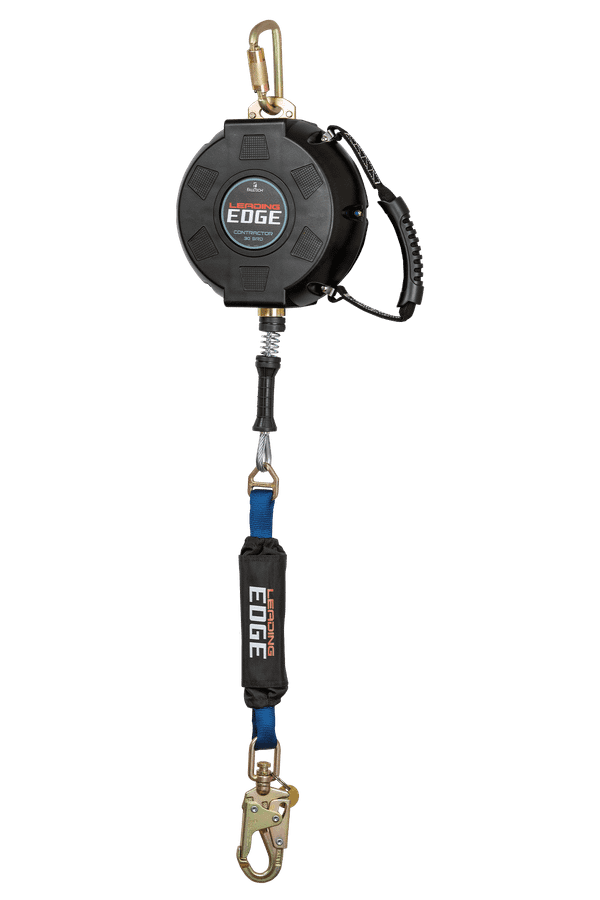

Contractor Leading Edge Class 2 SRL with 30' Galvanized Steel Cable and Anchorage Carabiner

SKU:

727630LE

UPC:

descriptor 2:

Galvanized Steel Wire Rope Lifeline

category tier 2:

Leading Edge SRLs

7th bullet:

Complies with ANSI Z359.14-2021 Class 2 SRL. Learn more and download White Paper

performance 7 header:

OSHA User Capacity

performance 5 detail:

42"

filter - csa:

CSA Compliant

filter - overhead srl lifeline connector material:

Alloy Steel

relevant standards 2:

OSHA 1926.502 and 1910.66

performance 7 detail:

130 to 310 lb max.

performance 6 header:

ANSI User Capacity

filter - overhead srl anchorage connector material:

Alloy Steel

material 4 detail:

Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength

descriptor 1:

Steel Swivel Snap Hook

sizes available:

CSA Part Number Available

filter - overhead srl anchorage connector:

Carabiner

similar solutions:

7226CLE, 727630LE, 727620

category tier 3:

Contractor Leading Edge

document name 1:

Instruction Manual (ANSI)

size 2:

727630LE - 30' (ANSI Compliant)

6th bullet:

Load-indicating snap hook provides visual fall event indication

5th bullet:

Integrated lifeline hand-grip simplifies dorsal connection and recoil spring helps prevent lifeline lock-up

4th bullet:

Durable glass-filled nylon housing extends service life

material 1 header:

Cable

plp icon - srl - length:

30'

other items you may need:

7395D, 7493A, 7035B

2nd bullet:

Internal inertial braking system provides positive stopping action and uniform deceleration.

size 1:

727620LE - 20' (ANSI Compliant)

document name 4:

Declaration of Conformity (CSA)

document file 3:

declarations_of_conformity/DC1104059_DOC.pdf

performance 1 header:

Static Strength

performance 1 detail:

3,600 lb min.

filter - brand:

Contractor Leading Edge

performance 3 detail:

1,350 lb

filter - length:

30'

document file 2:

instruction_manuals/CMSRD08_Rev_A_030420_EN_FR.pdf

document file 1:

instruction_manuals/MSRD08_Rev_D_102022_EN.pdf

filter - overhead srl lifeline connector:

Swivel Snap Hook

parent part number:

727620LE

relevant standards 1:

ANSI Z359.14-2021

size 5:

C727650LE - 50' (CSA Compliant)

performance 2 header:

ANSI SRL Class/Type

relevant standards 3:

CSA Z259.2.2-2017

performance 4 detail:

1,800 lb

filter - srl type:

SRL

size 4:

727650LE - 50' (ANSI Compliant)

material 2 header:

Energy Absorber

material 3 header:

Lifeline Connector

document name 2:

Instruction Manual (CSA)

product type:

Class 2 Leading Edge SRL

plp icon - srl - ansi class:

2

ansi z359.14-2021 srl class 1 or 2:

Class 2

filter - ansi:

ANSI Class 2 SRL Compliant

document name 3:

Declaration of Conformity (ANSI)

performance 5 header:

Max. Arrest Distance

material 4 header:

Anchorage Connector

performance 3 header:

Avg. Arrest Force

document file 4:

declarations_of_conformity/DC022008_DOC.pdf

material 2 detail:

Polyester tear-away

performance 2 detail:

Class 2 SRL

material 3 detail:

Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength

performance 4 header:

Max. Arrest Force

size 3:

C727630LE - 30' (CSA Compliant)

family group:

Contractor Class 2 Leading Edge SRL

3rd bullet:

Integrated external ViewPack® energy absorber strengthens the braking system and preserves lifeline integrity

filter - osha:

OSHA Compliant

material 1 detail:

7/32" galvanized steel; 3,600 lb min. static strength

performance 6 detail:

130 to 310 lb max.

filter - lifeline material:

Galvanized Steel Cable

1st bullet:

7/32" galvanized steel cable lifeline with load-indicating swivel snap hook
