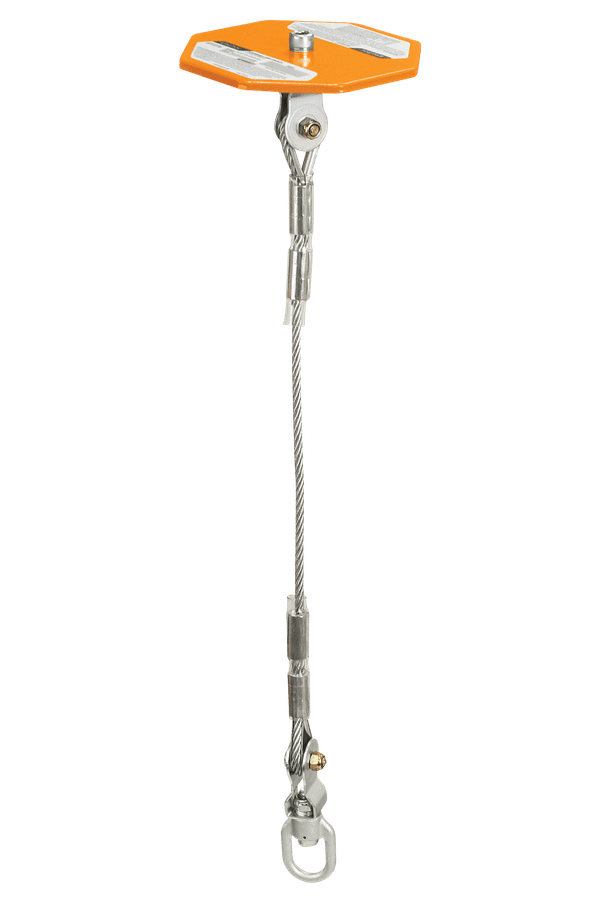

Suspended Cable Anchor for Drop-through Installation

SKU:

74946

UPC:

performance 3 detail:

130 to 425 lb max.

sizes available:

3 sizes available

similar solutions:

7372, 84202D, 7428

relevant standards 1:

ANSI Z359.18-2017

size 2:

74946 - 6'

1st bullet:

Installs through overhead openings in steel deck, concrete or grating

material 1 header:

Cable

size 1:

74942 - 2'

5th bullet:

Complies with ANSI Z359.18-2017

4th bullet:

Assembled with steel thimbles and swaged aluminum ferrules

3rd bullet:

1/4" galvanized steel cable with swivel connection eye

2nd bullet:

6" x 6" x 1/4" high-visibility steel load-bearing plate.

document file 2:

declarations_of_conformity/A1217028b_DOC.pdf

product type:

Drop-through Suspended

other items you may need:

72706SB1, 82710SC1, 8240, 7008B

performance 1 header:

Static Strength

filter - primary material:

Coated/Uncoated Cable

document name 2:

Declaration of Conformity

family group:

Multi-Application Anchorage

document name 1:

Instruction Manual

performance 2 detail:

130 to 310 lb max.

performance 3 header:

OSHA User Capacity

material 2 header:

Plate

parent part number:

74946

descriptor 1:

Uncoated Galvanized Cable

material 2 detail:

Powder coated carbon steel

filter - application:

Reusable

filter - ansi:

ANSI Compliant

category tier 2:

Multi-Application

performance 1 detail:

5,000 lb min.

descriptor 2:

Temporary and reusable

performance 2 header:

ANSI User Capacity

filter - osha:

OSHA Compliant

relevant standards 2:

OSHA 1926.502 and 1910.66

size 3:

749485 - 8 ½'

material 1 detail:

1/4" galvanized steel; 5,000 lb min. static strength

document file 1:

instruction_manuals/MANC10_Rev_B_112219_EN_ES.pdf

filter - anchor type:

Drop-through
