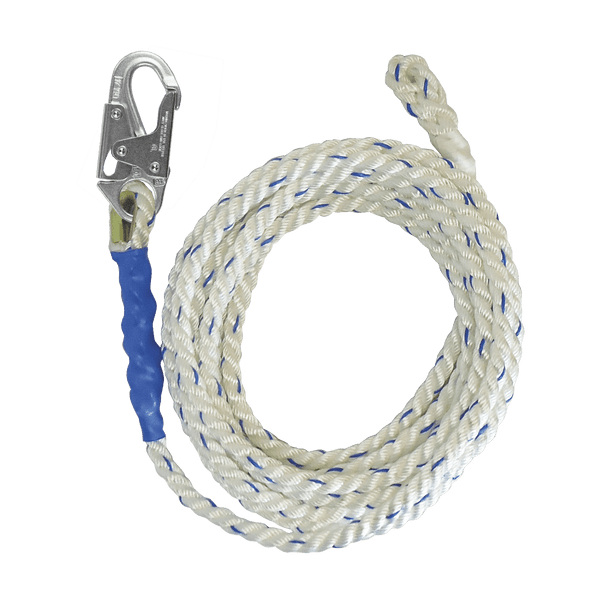

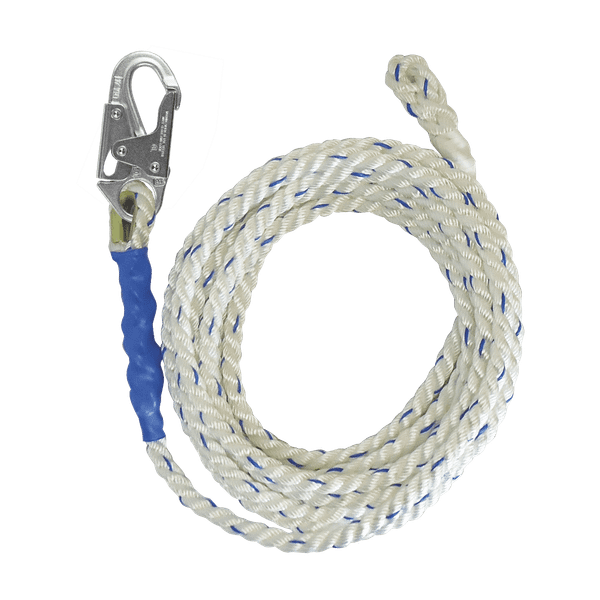

Premium Polyester Blend Vertical Lifeline with Back-spliced End

SKU:

8150

UPC:

document file 2:

instruction_manuals/CMVLL01_Rev_B_081822_EN_FR.pdf

filter - connector material:

Plated Alloy Steel

document file 3:

declarations_of_conformity/C0218073a_DOC.pdf

size 2:

C8125 - 25' (CSA Compliant)

filter - ansi:

ANSI Compliant

size 10:

8150250 - 250' (ANSI Compliant)

similar solutions:

8150T, 8150DH, 8151

category tier 2:

Vertical Lanyards

performance 1 header:

Static Strength

2nd bullet:

Premium polyester blend reduces kinking and hockling.

document file 4:

declarations_of_conformity/CC0520002a_DOC.pdf

size 4:

C8150 - 50' (CSA Compliant)

size 6:

8200 - 100' (ANSI Compliant)

relevant standards 3:

CSA Z259.2.5-2017

size 9:

820020 - 200' (ANSI Compliant)

document name 4:

Declaration of Conformity (CSA)

size 11:

8150300 - 300' (ANSI Compliant)

filter - csa:

CSA Compliant

material 3 detail:

Plated carbon steel

material 1 detail:

3-strand twisted polyester blend; 5,000 lb min.

document name 3:

Declaration of Conformity (ANSI)

descriptor 1:

Back-splice rope end

relevant standards 2:

OSHA 1926.502 and 1910.66

category tier 3:

Vertical Lifelines

filter - anchorage connector:

Snap Hook

performance 3 header:

OSHA User Capacity

performance 3 detail:

130 to 310 lb max.

sizes available:

8 sizes available; CSA Part Numbers Available

size 5:

8175 - 75' (ANSI Compliant)

size 3:

8150 - 50' (ANSI Compliant)

document file 1:

instruction_manuals/MVLL01_REV_D_051221_EN.pdf

size 8:

81505 - 150' (ANSI Compliant)

document name 2:

Instruction Manual (CSA)

filter - configuration:

Back-splice

parent part number:

8150

filter - osha:

OSHA Compliant

material 2 detail:

Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength

document name 1:

Instruction Manual (ANSI)

size 7:

C8200 - 100' (CSA Compliant)

size 1:

8125 - 25' (ANSI Compliant)

product type:

Lifeline 5/8" Rope

other items you may need:

7008B, 7410, 8388

material 1 header:

Rope

relevant standards 1:

ANSI Z359.15-2014

performance 2 detail:

130 to 310 lb max.

descriptor 2:

Back-splice

material 2 header:

Connector

4th bullet:

Includes alloy steel snap hook for anchorage connection

1st bullet:

Constructed with 5/8" low-stretch 3-strand twisted rope

6th bullet:

Complies with ANSI Z359.15-2014

5th bullet:

Back-spliced trailing end is ideally suited for pairing with hinged arresters and adjusters

performance 2 header:

ANSI User Capacity

3rd bullet:

Steel thimble and splice-protecting shrink tube are included for lasting durability

material 3 header:

Thimble

family group:

Vertical Lifeline

performance 1 detail:

5,000 lb min.
