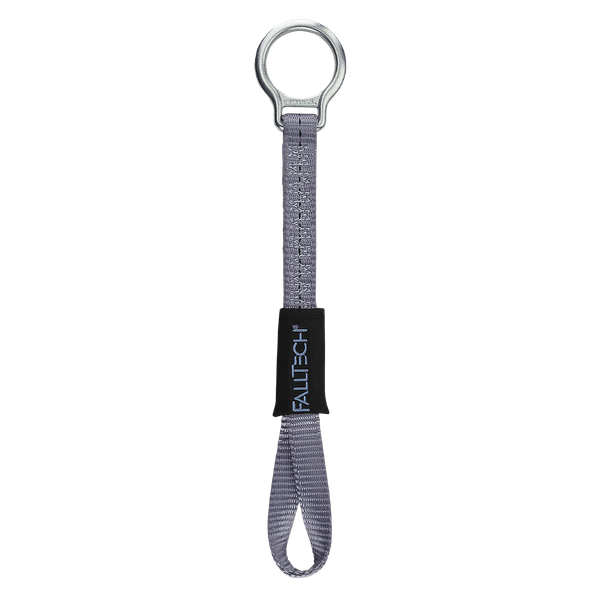

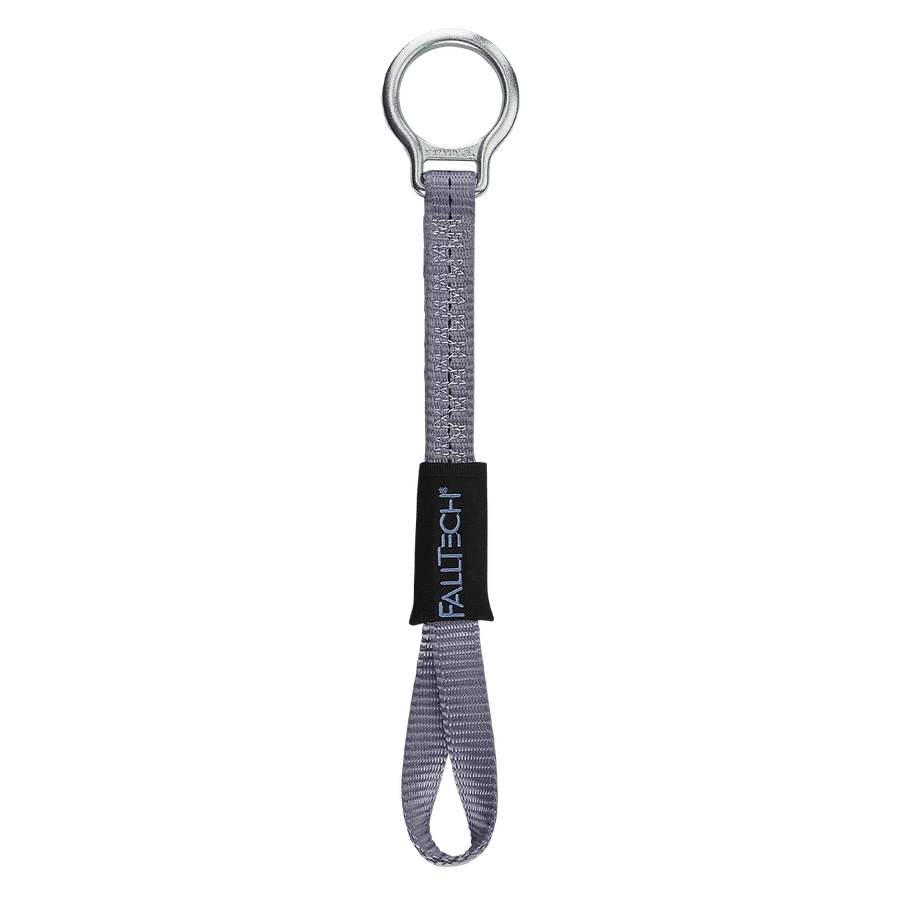

18" Dorsal D-ring Extender with Choke-loop

Features

• Provides improved over-the-shoulder reach for ease of connecting lanyards and SRLs
• Built with rugged polyester webbing and alloy steel D-ring.
• Features choke-loop for harness attachment with reduced weight
• Extender use will increase the user's total fall clearance distance when using an energy absorbing lanyard
• Complies with ANSI Z359.11-2021

SKU:

8366L

UPC:

filter - osha:

OSHA Compliant

filter - lanyard material:

Polyester Webbing

performance 2 header:

ANSI User Capacity

document name 1:

Instruction Manual

similar solutions:

8366, 836616, 8366C

material 2 header:

D-ring

performance 3 header:

OSHA User Capacity

2nd bullet:

Built with rugged polyester webbing and alloy steel D-ring.

performance 1 detail:

5,000 lb min.

performance 1 header:

Static Strength

3rd bullet:

Features choke-loop for harness attachment with reduced weight

document file 2:

declarations_of_conformity/B0424209_DOC.pdf

1st bullet:

Provides improved over-the-shoulder reach for ease of connecting lanyards and SRLs

other items you may need:

7080B, 7226C, 7276BWR

performance 2 detail:

130 to 310 lb max.

category tier 3:

Extenders

material 3 detail:

Polyester; 5,000 lb min. static strength

filter - ansi:

ANSI Compliant

performance 3 detail:

130 to 425 lb max.

relevant standards 1:

ANSI Z359.11-2021

descriptor 1:

Choke-loop and steel D-ring

material 1 header:

Webbing

product type:

18" Polyester Web

relevant standards 2:

OSHA 1926.502 and 1910.66

material 1 detail:

Polyester; 5,000 lb min. static strength

material 2 detail:

Plated alloy steel; 5,000 lb min. static strength

material 3 header:

Choke-loop

category tier 2:

Carabiners and Extenders

family group:

D-ring Extender

4th bullet:

Extender use will increase the user's total fall clearance distance when using an energy absorbing lanyard

document file 1:

instruction_manuals/MDRE01_Rev_E_061919_EN_ES_FR.pdf

document name 2:

Declaration of Conformity

5th bullet:

Complies with ANSI Z359.11-2021
