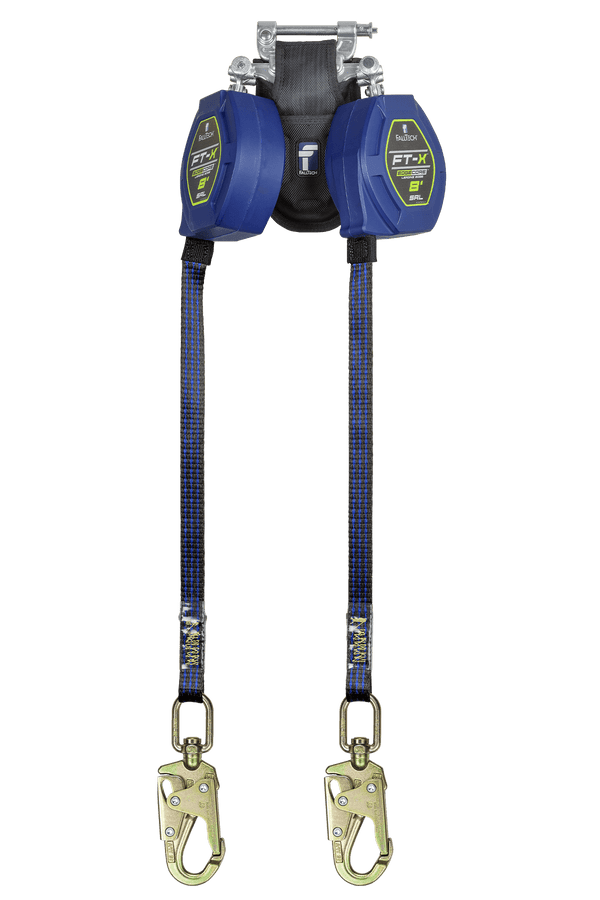

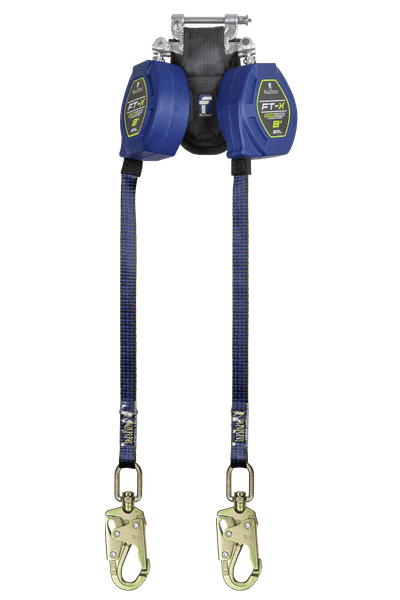

8' FT-X™ EdgeCore™ Class 2 Leading Edge Personal SRL-P, Twin-leg with Steel Snap Hooks with SpeedLink™

Play

×

SKU:

84108TP1

UPC:

performance 7 detail:

130 to 420 lb max.

material 2 header:

Energy Absorber

1st bullet:

EdgeCore™ lifeline is made from Kevlar® cables and a UV-resistant composite jacket, weighing 40% less than 3/16” galvanized cable used in most Class 2 SRL-P’s

brand image:


relevant standards 2:

OSHA 1926.502 and 1910.66

product type:

Class 2 Leading Edge SRL-P

document name 2:

Declaration of Conformity (ANSI)

video-link:

B4fZYDOfVfg

relevant standards 3:

CSA Z259.2.2-2017

relevant standards 1:

ANSI Z359.14-2021

descriptor 1:

Steel Snap Hooks

category tier 3:

FT-X™ EdgeCore™

document file 5:

sell_sheets/FT-X_EdgeCore_Flyer_042022.pdf

performance 4 header:

Max. Arrest Force

document name 4:

Sell Sheet/Brochure

performance 2 detail:

Class 2 SRL-P

filter - personal srl dorsal connector material:

Aluminum Alloy

filter - length:

8'

filter - personal srl dorsal connector:

Dorsal SRL Slide Connector

descriptor 2:

EdgeCore™ Synthetic Lifeline

document file 3:

declarations_of_conformity/DC1011056j_DOC.pdf

material 3 header:

Anchorage Connector

material 3 detail:

Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength

9th bullet:

Complies with ANSI Z359.14-2021 Class 2 SRL-P. Learn more and download White Paper

8th bullet:

Replacement retractable part number is 84108RP1

7th bullet:

Features SpeedLink™ field replaceability of damaged retractable units, lowering overall cost of ownership and reducing equipment down time. Request SpeedLink™ Spanner Tool

6th bullet:

Rated for workers weighing up to 420 pounds, including clothes, tools, gear, etc.

5th bullet:

Suitable for below D-ring tie-off up to five feet and leading edge exposures and hazards, including steel and precast concrete

4th bullet:

Internal mechanism design minimizes unintentional lockups to keep you moving freely and productively

2nd bullet:

Compact design elevates the SRDs to align optimally with worker motion, increasing both comfort and productivity

performance 4 detail:

1,800 lb

3rd bullet:

Features comprehensive fall clearance charts and tables inside the energy absorber cover

material 1 header:

Lifeline

similar solutions:

84108SP1, 8354LEY, 721530LE, 7232CLE

document name 3:

Declaration of Conformity (CSA)

other items you may need:

8127B, 8143, 7372, 7530, 5040

filter - srl type:

SRL-P

plp icon - srl - ansi class:

2

performance 6 detail:

130 to 310 lb max.

performance 5 header:

Max. Arrest Distance

performance 5 detail:

42"

plp icon - srl - axis:

AXIS

plp icon - srl - length:

8'

performance 6 header:

ANSI User Capacity

filter - csa:

CSA Compliant

material 2 detail:

Polyester tear-away

filter - personal srl anchorage connector material:

Plated Alloy Steel

document name 5:

FT-X™ EdgeCore™ Flyer

ansi z359.14-2021 srl class 1 or 2:

Class 2

category tier 2:

Personal SRLs

filter - brand:

FT-X™ EdgeCore™ Leading Edge

filter - personal srl anchorage connector:

Snap Hook(s)

document name 1:

Instruction Manual

document file 4:

sell_sheets/FT-X_EdgeCore_Brochure_032022.pdf

filter - ansi:

ANSI Class 2 SRL-P Compliant

performance 2 header:

ANSI SRL Class/Type

filter - lifeline material:

EdgeCore™

document file 2:

declarations_of_conformity/D0302046n_DOC.pdf

material 4 detail:

Aluminum alloy; 3,600 lb min.

material 4 header:

Dorsal Connector

performance 7 header:

OSHA User Capacity

material 1 detail:

EdgeCore™; 5,000 lb min. static strength

document file 1:

instruction_manuals/MSRD32_Rev_A_080823_EN_ES_FR_BOOKLET.pdf

filter - configuration:

Twin-leg

performance 1 detail:

3,600 lb min.

family group:

FT-X™ EdgeCore™ Class 2 Leading Edge Personal SRL-P

performance 3 detail:

1,350 lb max.

filter - osha:

OSHA Compliant

performance 3 header:

Avg. Arrest Force

performance 1 header:

Static Strength
