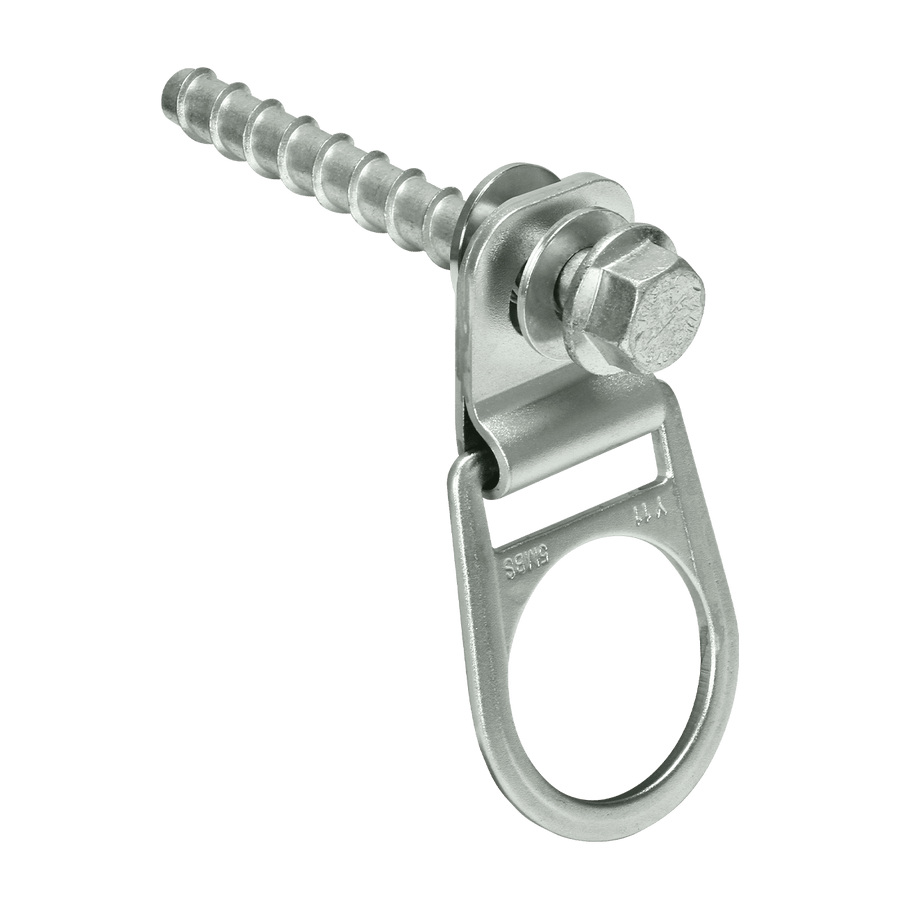

Rotating D-ring Anchor with Concrete Screw

Name: Fall Tech
Address: 1306 S. Alameda St., Compton, CA 90221, Compton, CA, 90221, US
Telephone: (800) 719-4619

Contact Sales

Built for roof and deck anchorage applications, this rotating D-ring anchor improves worker range of motion while providing a durable permanent tie-off point for fall protection systems.

Downloads

Instruction Manual

Spec Sheet

Compliant With:

OSHA 1926.502 and 1910.66

SKU:: 7451A
UPC:: 848013094605
Material 1 Header:: Anchoring Plate
Material 1 Detail:: Stainless steel
Filter - Application:: Reusable
Material 2 Detail:: Plated alloy steel; 5,000 lb min. static strength
2nd Bullet:: Precision-cut bushing provides 360° D-ring rotation.
Performance 1 Detail:: 5,000 lb min.
Family Group:: Concrete Anchorage
Performance 3 Detail:: 130 to 425 lb max.
Performance 1 Header:: Static Strength
Filter - OSHA:: OSHA Compliant
Other Items You May Need:: 8256, 7081B, 72706TB3
1st Bullet:: Features stainless steel anchoring plate with alloy steel connecting D-ring
Performance 3 Header:: OSHA User Capacity
5th Bullet:: Meets OSHA 1926.502 regulations
4th Bullet:: Features reusable anchoring plate and D-ring
3rd Bullet:: Ideally suited for temporary or permanent installation in cured concrete
Product Type:: Rotating D-ring
Performance 2 Detail:: 130 to 310 lb max.
Relevant Standards 2:: OSHA 1926.502 and 1910.66
Material 2 Header:: D-ring
Similar Solutions:: 7451C, 7451AC, 7452AC
Performance 2 Header:: ANSI User Capacity
Filter - Anchor Type:: Bolt-on/Weld-on
category tier 2:: Concrete
Filter - Primary Material:: Stainless Steel
Instruction Manual:: https://cdn11.bigcommerce.com/s-1wxw1202sk/content/product_documents/instruction_manuals/MANC15_Rev_B_061819.pdf
BC Status:: Yes
Descriptor 1:: Bolt-on Concrete Screw
Descriptor 2:: For cured concrete
Related Products:: 7451C,7451AC,7452AC,8256,7081B,72706TB3
BC Category:: 328
