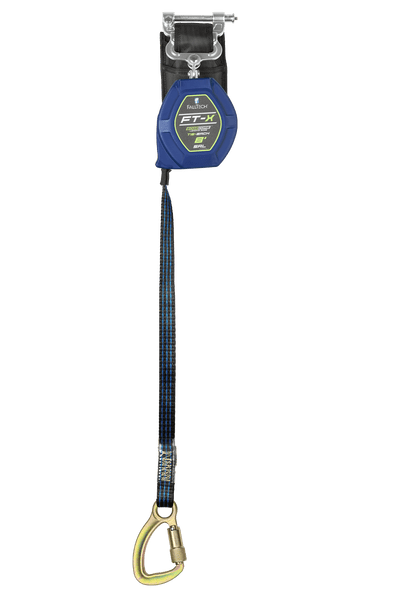

8' FT-X® EdgeCore™ Tie-Back Class 2 Leading Edge Personal SRL-P, Single-leg with Steel 5k Carabiner

SKU:

84108SP8

UPC:

performance 3 detail:

1,350 lb max.

performance 2 header:

ANSI SRL Class

white cap - package width:

12

material 4 header:

Dorsal Connector

ansi z359.14-2021 srl class 1 or 2:

Class 2

material 4 detail:

Aluminum alloy; 3,600 lb min.

material 3 header:

Anchorage Connector

relevant standards 3:

CSA Z259.2.2-2017

relevant standards 1:

ANSI Z359.14-2021

performance 5 header:

Max. Arrest Distance

product type:

Class 2 LE Tie-Back SRL-P

white cap - total shelf life:

10000

document file 3:

declarations_of_conformity/DC1011055_DOC.pdf

7th bullet:

Features steel carabiner leg-end connector with 5,000 lb rated gate for tie-back applications

filter - personal srl anchorage connector:

Carabiner(s)

9th bullet:

Complies with ANSI Z359.14-2021 Class 2 SRL-P. Learn more and download White Paper

plp icon - srl - axis:

AXIS

material 1 header:

Lifeline

category tier 2:

Personal SRLs

white cap - package weight:

12.9

performance 1 detail:

3,600 lb min.

filter - personal srl anchorage connector material:

Plated Alloy Steel

performance 7 detail:

130 to 420 lb max.

document file 4:

sell_sheets/FT-X_EdgeCore_Tie-Back_Class2_Brochure_122022.pdf

white cap - package height uom:

Inches|INH

white cap - package depth:

17

descriptor 1:

Steel 5k Carabiner

white cap - package depth uom:

Inches|INH

performance 5 detail:

42"

brand image:


material 2 header:

Energy Absorber

filter - ansi:

ANSI Class 2 SRL-P Compliant

filter - brand:

FT-X® EdgeCore™ Tie-Back Leading Edge

performance 7 header:

OSHA User Capacity

document file 2:

declarations_of_conformity/D0302046n_DOC.pdf

document name 4:

Sell Sheet/Brochure

plp icon - srl - ansi class:

2

family group:

FT-X® EdgeCore™ Tie-Back Class 2 Leading Edge Personal SRL-P

plp icon - srl - length:

8'

material 3 detail:

Plated alloy steel; 5,000 lb min. static strength with 5,000 lb gate strength

1st bullet:

EdgeCore™ lifeline is made from Kevlar® cables and a UV-resistant composite jacket, weighing 40% less than 3/16” galvanized cable used in most Class 2 SRL-P’s

white cap - package height:

6

document name 3:

Declaration of Conformity (CSA)

filter - personal srl dorsal connector material:

Aluminum Alloy

material 1 detail:

EdgeCore™; 5,000 lb min. static strength

material 2 detail:

Polyester tear-away

descriptor 2:

EdgeCore™ Synthetic Lifeline

filter - axis enabled:

AXIS™ Enabled

white cap - country of origin:

840

document name 1:

Instruction Manual

4th bullet:

Internal mechanism design minimizes unintentional lockups to keep you moving freely and productively

performance 4 header:

Max. Arrest Force

2nd bullet:

Compact design elevates the SRDs to align optimally with worker motion, increasing both comfort and productivity

white cap - unspsc code:

46182305

white cap - package weight uom:

Pound|LBR

white cap - package width uom:

Inches|INH

filter - application:

Tie-Back

white cap - selling uom:

EA - Each|EA

8th bullet:

AXIS™ enabled: Easily and accurately calculate minimum fall clearance with the AXIS safety calculator on your mobile device or computer

document name 5:

FT-X® EdgeCore™ Tie-Back Flyer

filter - personal srl dorsal connector:

Dorsal SRL Slide Connector

performance 6 header:

ANSI User Capacity

filter - csa:

CSA Compliant

performance 3 header:

Avg. Arrest Force

filter - length:

8'

similar solutions:

84108TP8, 84108SP8S, 84308SP8, 8354LE

filter - osha:

OSHA Compliant

filter - srl type:

SRL-P

other items you may need:

8127B, 8128B, 8143B, 8143BFD

performance 4 detail:

1,800 lb

document file 5:

sell_sheets/FT_X_EdgeCore_Tie-Back_Flyer_032023.pdf

performance 2 detail:

Class 2 SRL-P

document name 2:

Declaration of Conformity (ANSI)

3rd bullet:

Features comprehensive fall clearance charts and tables inside the energy absorber cover

category tier 3:

FT-X® EdgeCore™ Tie-Back

6th bullet:

Rated for workers weighing up to 420 pounds, including clothes, tools, gear, etc.

performance 1 header:

Static Strength

document file 1:

instruction_manuals/MSRD23_Rev_I_052025_EN_ES_FR_BOOKLET.pdf

white cap - gtin:

00848013039705

relevant standards 2:

OSHA 1926.502 and 1910.66

performance 6 detail:

130 to 310 lb max.

filter - configuration:

Single-leg

filter - lifeline material:

EdgeCore™

5th bullet:

Suitable for below D-ring tie-off up to five feet and leading edge exposures and hazards, including steel and precast concrete
