EdgeCore™ lifeline is made from Kevlar® cables and a UV-resistant composite jacket, weighing 40% less than 3/16” galvanized cable used in most Class 2 SRL-P’s
material 3 header:
Anchorage Connector
plp icon - srl - ansi class:
2
filter - personal srl anchorage connector:
Rebar Hook(s)
material 3 detail:
Aluminum alloy; 5,000 lb min. static strength with 3,600 lb gate strength
filter - brand:
FT-X® EdgeCore™ Leading Edge
3rd bullet:
Features comprehensive fall clearance charts and tables inside the energy absorber cover
filter - srl type:
SRL-P
performance 7 detail:
130 to 420 lb max.
white cap - package width uom:
Inches|INH
performance 6 detail:
130 to 310 lb max.
brand image:
filter - osha:
OSHA Compliant
material 4 detail:
Aluminum alloy; 3,600 lb min.
white cap - total shelf life:
10000
document file 3:
declarations_of_conformity/DC1011056j_DOC.pdf
similar solutions:
84108SP5, 8354LEY, 721530LE, 7232CLE
document name 1:
Instruction Manual
material 1 detail:
EdgeCore™; 5,000 lb min. static strength
filter - length:
8'
filter - ansi:
ANSI Class 2 SRL-P Compliant
family group:

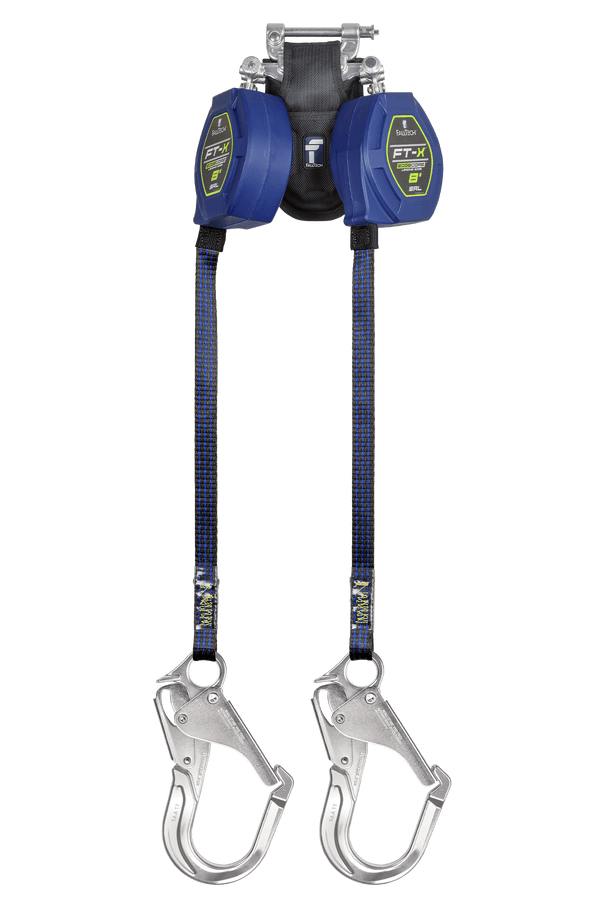

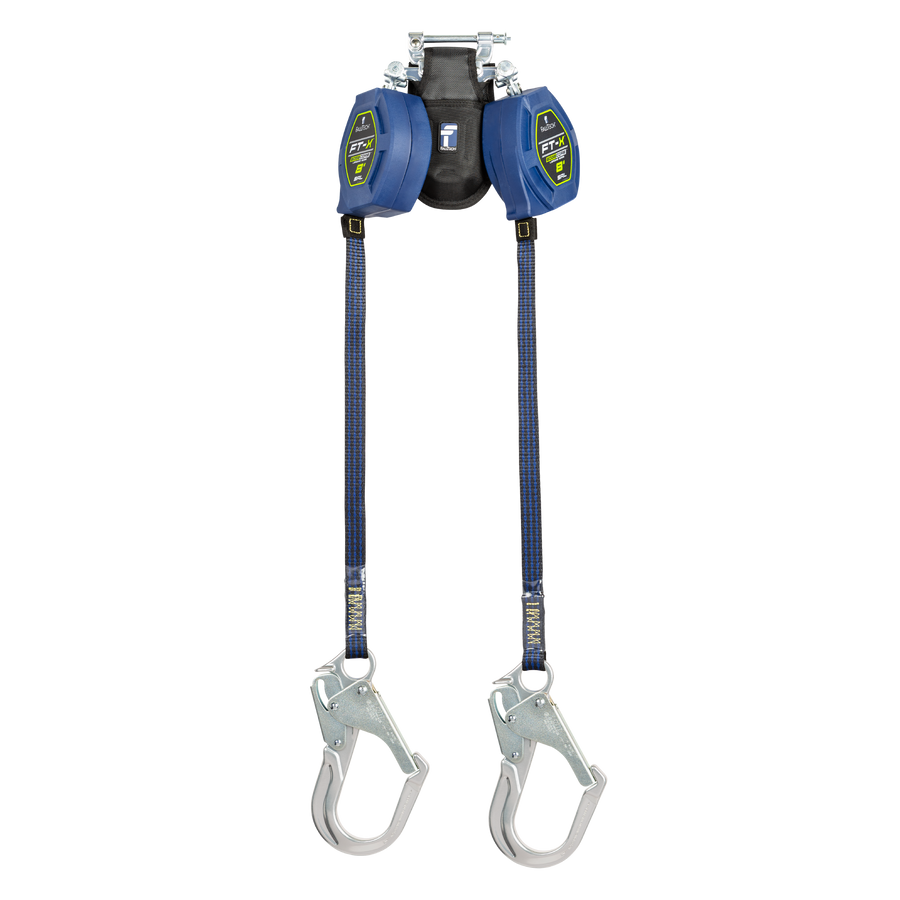

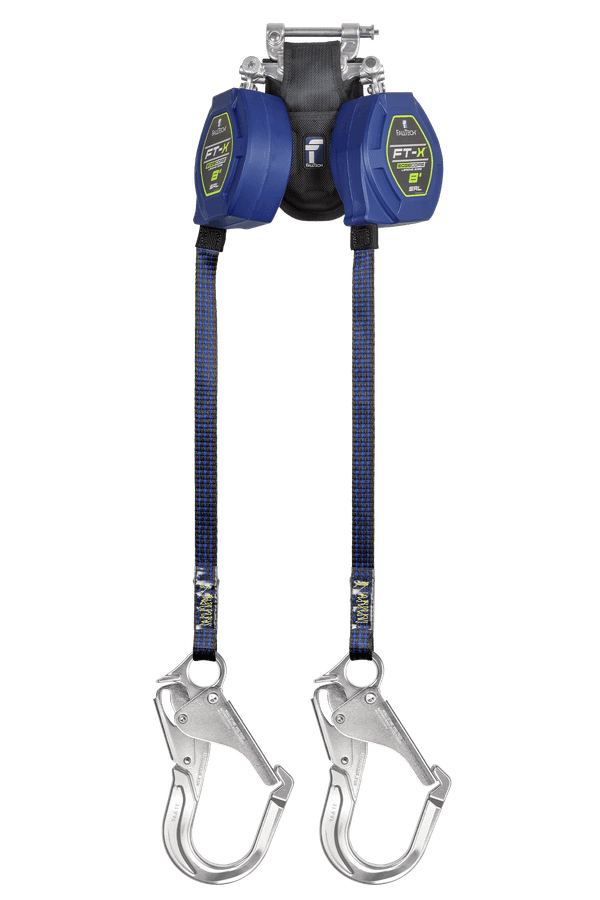

FT-X® EdgeCore™ Class 2 Leading Edge Personal SRL-P
relevant standards 1:
ANSI Z359.14-2021
performance 6 header:
ANSI User Capacity
performance 2 header:
ANSI SRL Class/Type
9th bullet:
AXIS™ enabled: Easily and accurately calculate minimum fall clearance with the AXIS safety calculator on your mobile device or computer
performance 3 header:
Avg. Arrest Force
descriptor 1:
Aluminum Rebar Hooks
6th bullet:
Rated for workers weighing up to 420 pounds, including clothes, tools, gear, etc.
5th bullet:
Suitable for below D-ring tie-off up to five feet and leading edge exposures and hazards, including steel and precast concrete
4th bullet:
Internal mechanism design minimizes unintentional lockups to keep you moving freely and productively
document file 5:
sell_sheets/FT-X_EdgeCore_Flyer_042022.pdf
material 2 header:
Energy Absorber
filter - axis enabled:
AXIS™ Enabled
document name 4:
Sell Sheet/Brochure
performance 1 header:
Static Strength
performance 3 detail:
1,350 lb max.
white cap - package depth:
17
filter - lifeline material:
EdgeCore™
category tier 2:
Personal SRLs
white cap - package weight:
16.5
white cap - selling uom:
EA - Each|EA
white cap - gtin:
00848013090263
other items you may need:
8127B, 8143, 7372, 7530, 5040
white cap - package height:
6
white cap - country of origin:
840
filter - personal srl dorsal connector material:
Aluminum Alloy
document file 4:
sell_sheets/FT-X_EdgeCore_Brochure_042025.pdf
filter - configuration:
Twin-leg
relevant standards 3:
CSA Z259.2.2-2017
filter - personal srl anchorage connector material:
Aluminum Alloy
white cap - package height uom:
Inches|INH
white cap - unspsc code:
46182305
filter - personal srl dorsal connector:
Dorsal SRL Slide Connector
white cap - package weight uom:
Pound|LBR
2nd bullet:
Compact design elevates the SRDs to align optimally with worker motion, increasing both comfort and productivity
plp icon - srl - axis:
AXIS
plp icon - srl - length:
8'
filter - csa:
CSA Compliant
descriptor 2:
EdgeCore™ Synthetic Lifeline
relevant standards 2:
OSHA 1926.502 and 1910.66
product type:
Class 2 Leading Edge SRL-P
white cap - package width:
12
document name 5:
FT-X® EdgeCore™ Flyer
performance 7 header:
OSHA User Capacity
ansi z359.14-2021 srl class 1 or 2:
Class 2
performance 5 detail:
42"
7th bullet:
Features SpeedLink™ field replaceability of damaged retractable units, lowering overall cost of ownership and reducing equipment down time. Request SpeedLink™ Spanner Tool
