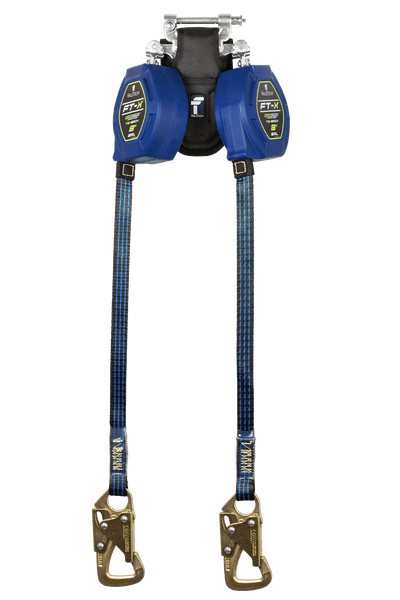

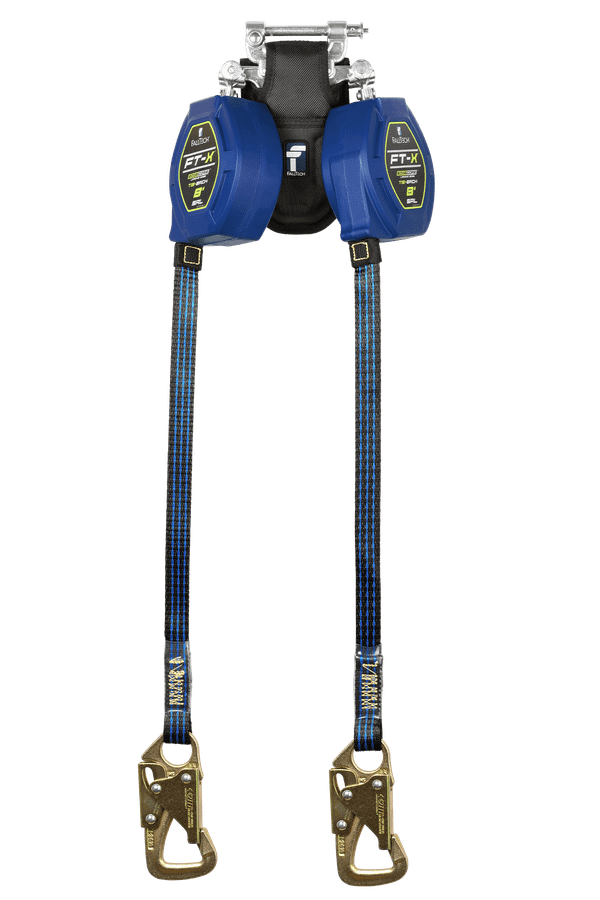

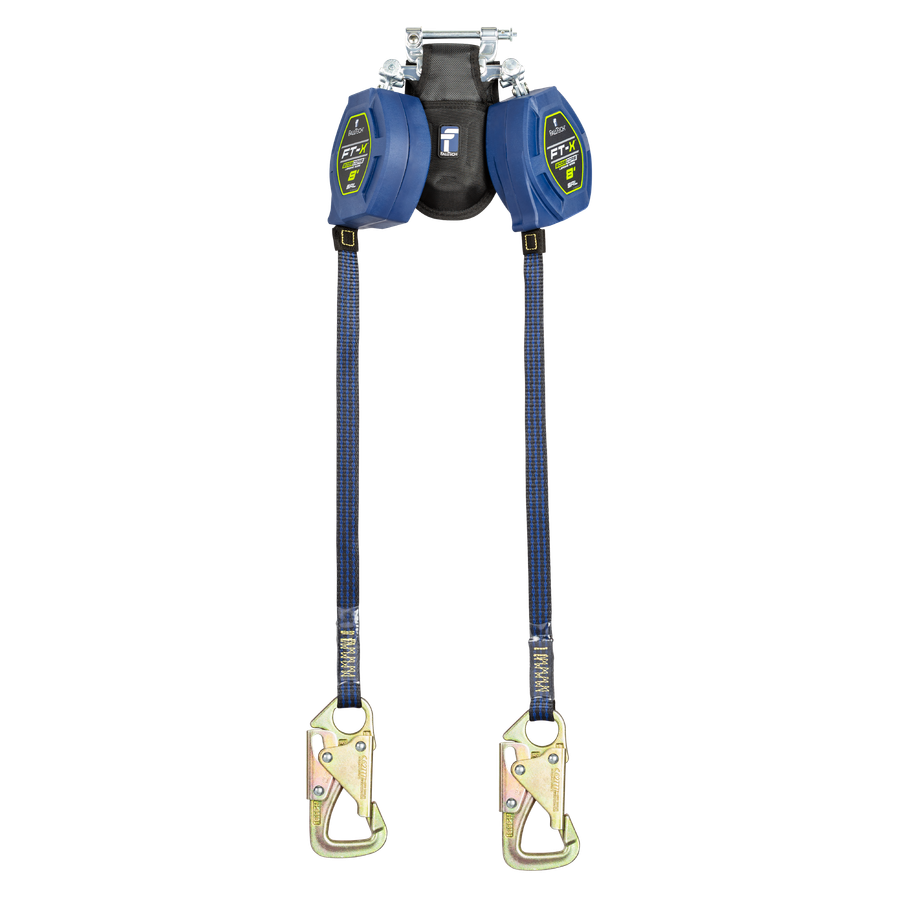

8' FT-X® EdgeCore™ Tie-Back Class 2 Leading Edge Personal SRL-P, Twin-leg with Steel 5k Snap Hooks with SpeedLink™

Contact Sales

SKU:

84108TP8S

UPC:

performance 3 detail:

1,350 lb max.

document file 3:

declarations_of_conformity/DC1011056j_DOC.pdf

white cap - gtin:

00848013089854

document name 2:

Declaration of Conformity (ANSI)

filter - lifeline material:

EdgeCore™

performance 6 header:

ANSI User Capacity

material 1 header:

Lifeline

filter - configuration:

Twin-leg

filter - ansi:

ANSI Class 2 SRL-P Compliant

material 2 header:

Energy Absorber

white cap - package width:

12

plp icon - srl - axis:

AXIS

filter - csa:

CSA Compliant

10th bullet:

AXIS™ enabled: Easily and accurately calculate minimum fall clearance with the AXIS safety calculator on your mobile device or computer

filter - osha:

OSHA Compliant

relevant standards 1:

ANSI Z359.14-2021

performance 5 detail:

42"

filter - brand:

FT-X® EdgeCore™ Tie-Back Leading Edge

performance 1 detail:

3,600 lb min.

document file 5:

sell_sheets/FT_X_EdgeCore_Tie-Back_Flyer_032023.pdf

category tier 2:

Personal SRLs

brand image:


plp icon - srl - length:

8'

performance 7 header:

OSHA User Capacity

white cap - package width uom:

Inches|INH

material 4 detail:

Aluminum alloy; 3,600 lb min.

material 4 header:

Dorsal Connector

performance 6 detail:

130 to 310 lb max.

white cap - country of origin:

840

other items you may need:

8127B, 8128B, 8143B, 8143BFD

category tier 3:

FT-X® EdgeCore™ Tie-Back

white cap - package weight uom:

Pound|LBR

performance 4 detail:

1,800 lb

document file 4:

sell_sheets/FT-X_EdgeCore_Tie-Back_Class2_Brochure_122022.pdf

white cap - unspsc code:

46182305

document file 2:

declarations_of_conformity/D0302046n_DOC.pdf

material 1 detail:

EdgeCore™; 5,000 lb min. static strength

performance 2 header:

ANSI SRL Class

white cap - package height:

6

filter - srl type:

SRL-P

1st bullet:

EdgeCore™ lifeline is made from Kevlar® cables and a UV-resistant composite jacket, weighing 40% less than 3/16” galvanized cable used in most Class 2 SRL-P’s

white cap - package weight:

14.4

white cap - total shelf life:

10000

filter - axis enabled:

AXIS™ Enabled

descriptor 1:

Steel 5k Tie-Back Snap Hooks

performance 5 header:

Max. Arrest Distance

9th bullet:

Replacement retractable part number is 84108RP8S

3rd bullet:

Features comprehensive fall clearance charts and tables inside the energy absorber cover

7th bullet:

Features steel snap hook leg-end connectors with 5,000 lb rated gate for tie-back applications

8th bullet:

Features SpeedLink™ field replaceability of damaged retractable units, lowering overall cost of ownership and reducing equipment down time. Request SpeedLink™ Spanner Tool

5th bullet:

Suitable for below D-ring tie-off up to five feet and leading edge exposures and hazards, including steel and precast concrete

6th bullet:

Rated for workers weighing up to 420 pounds, including clothes, tools, gear, etc.

11th bullet:

Complies with ANSI Z359.14-2021 Class 2 SRL-P. Learn more and download White Paper

4th bullet:

Internal mechanism design minimizes unintentional lockups to keep you moving freely and productively

white cap - package height uom:

Inches|INH

plp icon - srl - ansi class:

2

performance 7 detail:

130 to 420 lb max.

ansi z359.14-2021 srl class 1 or 2:

Class 2

material 2 detail:

Polyester tear-away

filter - application:

Tie-Back

document name 5:

FT-X® EdgeCore™ Tie-Back Flyer

document name 4:

Sell Sheet/Brochure

document name 3:

Declaration of Conformity (CSA)

document file 1:

instruction_manuals/MSRD43_Rev_A_060425_EN_ES_FR_BOOKLET.pdf

performance 4 header:

Max. Arrest Force

relevant standards 2:

OSHA 1926.502 and 1910.66

material 3 header:

Anchorage Connector

document name 1:

Instruction Manual

performance 1 header:

Static Strength

filter - personal srl dorsal connector:

Dorsal SRL Slide Connector

filter - length:

8'

performance 2 detail:

Class 2 SRL-P

family group:

FT-X® EdgeCore™ Tie-Back Class 2 Leading Edge Personal SRL-P

material 3 detail:

Plated alloy steel; 5,000 lb min. static strength with 5,000 lb gate strength

descriptor 2:

EdgeCore™ Synthetic Lifeline

filter - personal srl dorsal connector material:

Aluminum Alloy

filter - personal srl anchorage connector material:

Plated Alloy Steel

filter - personal srl anchorage connector:

Snap Hook(s)

2nd bullet:

Compact design elevates the SRDs to align optimally with worker motion, increasing both comfort and productivity

similar solutions:

84108TP8, 84108SP8S, 84308TP8S, 8354LEY

white cap - package depth uom:

Inches|INH

white cap - package depth:

17

performance 3 header:

Avg. Arrest Force

relevant standards 3:

CSA Z259.2.2-2017

white cap - selling uom:

EA - Each|EA

product type:

Class 2 LE Tie-Back SRL-P
